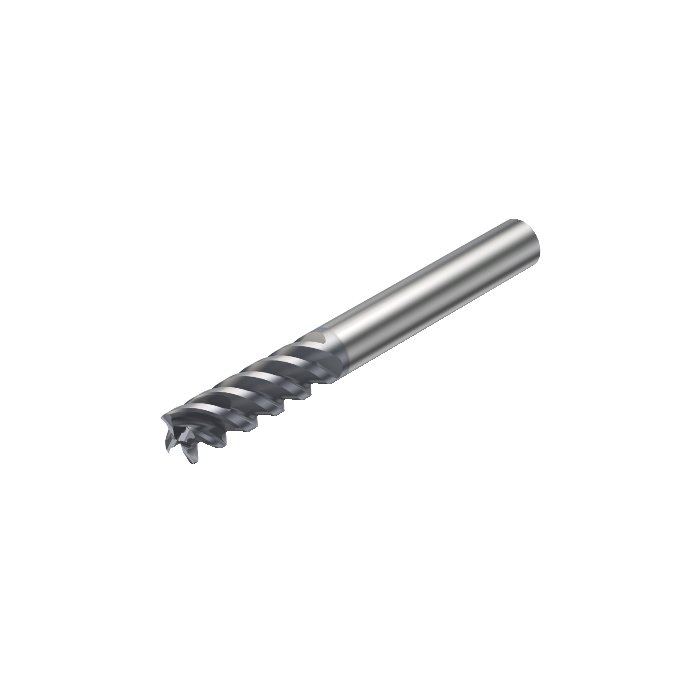

Sandvik Coromant RA216.23-1250AAK06P 1630 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant RA216.23-1250AAK06P 1630 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 5740184
Price: 1720.40 ZAR
Availability: InStock

Be the first to review this product

R 1 720,40 inc. vat

In stock

SKU

5740184

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	76.2mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.043kg
OAL - Overall Length	76.2mm
OHX - Maximum Overhang	40.2mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	8deg
RE - Corner Radius	0.397mm
LU - Usable Length	9.525mm
APMX - Depth Of Cut Maximum	9.525mm
DC - Cutting Diameter	4.76mm
DCF - Cutting Diameter Face Contact	3.966mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.001050420168
ORDCODE	RA216.23-1250AAK06P 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-08-10 14:12:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
