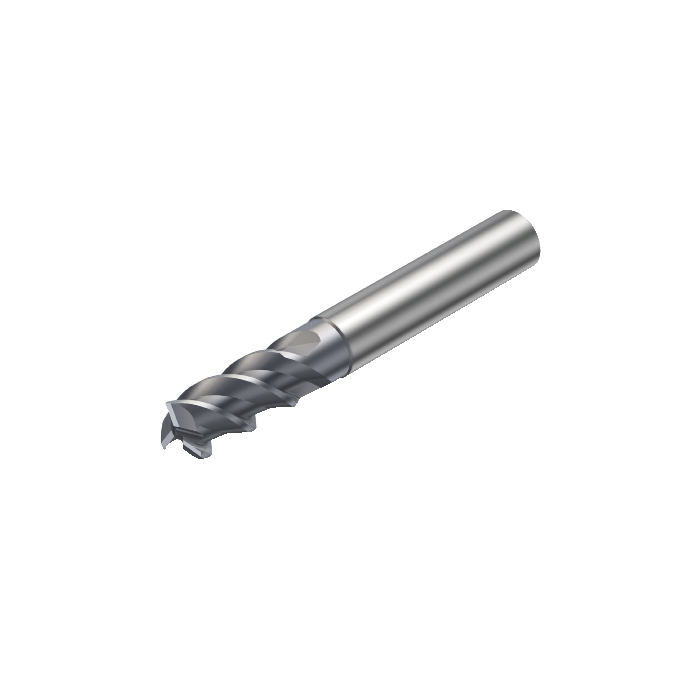

Sandvik Coromant RA216.33-0845-CK04P 1640 CoroMill™ Plura solid carbide square shoulder end mill

Name: Sandvik Coromant RA216.33-0845-CK04P 1640 CoroMill™ Plura solid carbide square shoulder end mill
SKU: 5890129
Price: 1357.00 ZAR
Availability: InStock

Be the first to review this product

R 1 357,00 inc. vat

In stock

SKU

5890129

CoroMill® Plura solid carbide square shoulder end mill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide square shoulder end mill

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.037kg
OAL - Overall Length	63.5mm
OHX - Maximum Overhang	36.5mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	8deg
LU - Usable Length	11.025mm
APMX - Depth Of Cut Maximum	7.35mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.1mm
DC - Cutting Diameter	3.175mm
DCF - Cutting Diameter Face Contact	2.975mm
DN - Neck Diameter	3.01mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	4deg
GAMP - Axial Rake Angle	3.5deg
ULDR - Usable Length Diameter Ratio	3.4724409448819
ORDCODE	RA216.33-0845-CK04P 1640
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:23:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
