Sandvik Coromant N331.32-127S40EMQ CoroMill™ 331 adjustable full side and face disc milling cutter

Name: Sandvik Coromant N331.32-127S40EMQ CoroMill™ 331 adjustable full side and face disc milling cutter
SKU: 5737697
Price: 29598.70 ZAR
Availability: OutOfStock

Be the first to review this product

R 29 598,70 inc. vat

Out of stock

SKU

5737697

CoroMill® 331 adjustable full side and face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 adjustable full side and face disc milling cutter

More Information

More Information
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	13mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	141001/min
WT - Weight Of Item	634g
OAL - Overall Length	16mm
OHX - Maximum Overhang	13mm
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	10mm
RE - Corner Radius	5mm
Insert Thickness	3.96875mm
CW - Cutting Width	10mm
CDX - Cutting Depth Maximum	35mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	127mm
DCF - Cutting Diameter Face Contact	117mm
DCX - Maximum Cutting Diameter	127mm
DHUB - Hub Diameter	55mm
THUB - Hub Thickness	16mm
PSW - Premachined Slot Width	0mm
ORDCODE	N331.32-127S40EMQ
ADINTMS - Adaptive Interface Machine Direction	M_FDA22_G4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:39:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC10T3M_1
Hand	N

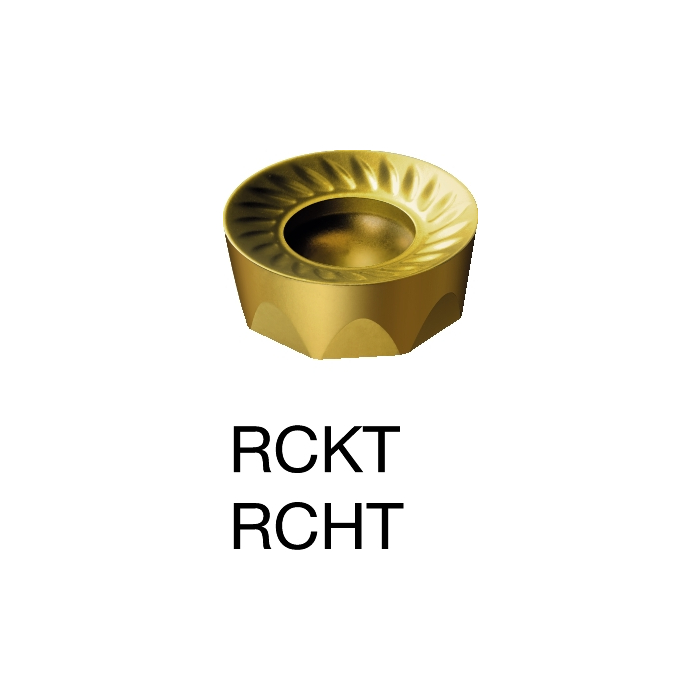

MIID - Master Insert Identification	RCKT 10 T3 M0
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	10
CICT - Cutting Item Count	10
ZEFP - Peripheral Effective Cutting Edge Count	10
DRVCT - Drive Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
