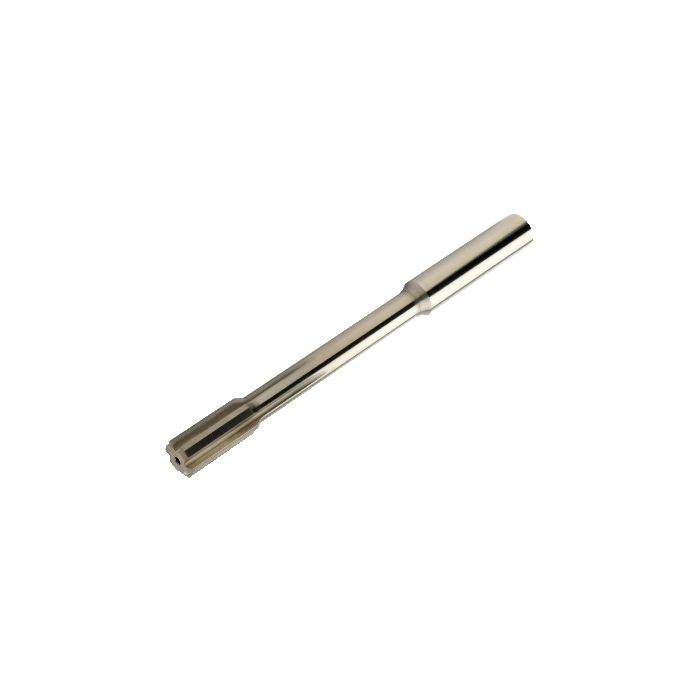

Sandvik Coromant 435.B-1800-A1-XF H10F CoroReamer® 435 solid carbide reamer
R 5 748,85
inc. vat
In stock
SKU
6266814
CoroReamer™ 435 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 435 solid carbide reamer
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 18mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 147.3mm |
| RPMX - Rotational Speed Maximum | 16981/min |
| WT - Weight Of Item | 0.404kg |
| OAL - Overall Length | 150mm |
| OHX - Maximum Overhang | 99.3mm |
| LU - Usable Length | 102mm |
| L - Cutting Edge Length | 25mm |
| APMX - Depth Of Cut Maximum | 0.3mm |
| TG - Taper Gradient | 0 |
| DC - Cutting Diameter | 18mm |
| DN - Neck Diameter | 14mm |
| FHA - Flute Helix Angle | 0deg |
| TCHAL - Achievable Hole Tolerance Lower | 0mm |
| TCHAU - Achievable Hole Tolerance Upper | 0.018mm |
| LCF - Chip Flute Length | 32.5mm |
| PHD - Premachined Hole Diameter | 17.8mm |
| PLGL - Plug Length | 2.7mm |
| ORDCODE | 435.B-1800-A1-XF H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1800_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 13:01:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H7 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| NOF - Flute Count | 6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
