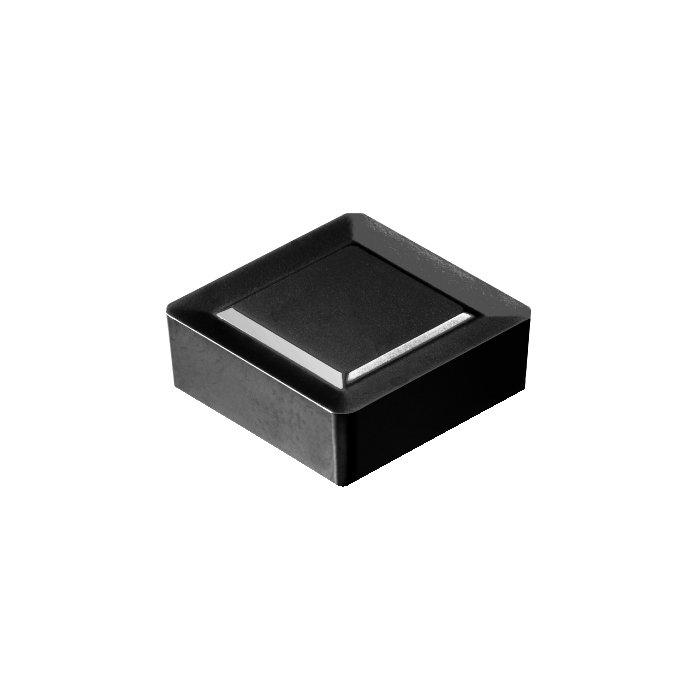

Sandvik Coromant SBEX 12 04 ZZ-11 3220 Auto FS insert for milling
Next
Sandvik Coromant SBEX 12 04 ZZ-11 K20W Auto FS insert for milling
Previous
![Sandvik Coromant SBEX 12 04 ZZ-11 3220 Auto FS insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/49151143d/sandvik-coromant-sbex-12-04-zz-11-3220-auto-fs-insert-for-milling.jpg)
![Sandvik Coromant SBEX 12 04 ZZ-11 K20W Auto FS insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/49149a13b/sandvik-coromant-sbex-12-04-zz-11-k20w-auto-fs-insert-for-milling.jpg)
R 449,65
inc. vat
In stock
SKU
5748831
Auto FS insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto FS insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 10.2g |
AN - Clearance Angle Major | 5deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.5mm |
Insert Thickness | 4.7625mm |
LE - Cutting Edge Effective Length | 8mm |
L - Cutting Edge Length | 12.7mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 0.7mm |
GAN - Insert Rake Angle | 8deg |
APMX - Depth Of Cut Maximum | 8mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.56mm |
ORDCODE | SBEX 12 04 ZZ-11 3040 |
CHANGEDATE | 2022-04-06 03:02:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SB1204ZZ_1 |
Grade | 3040 |
COATING | CVD TiCN+Al2O3 |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
