R 338,10
inc. vat
Out of stock
SKU
5749032

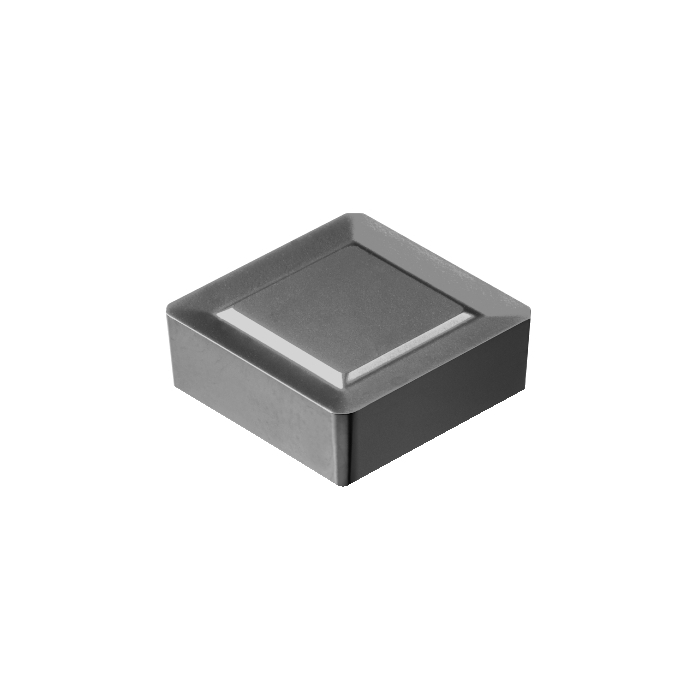

Auto FS insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto FS insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.01kg |
AN - Clearance Angle Major | 5deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.5mm |
Insert Thickness | 4.7625mm |
LE - Cutting Edge Effective Length | 8mm |
L - Cutting Edge Length | 12.7mm |
KRINS - Major Cutting Edge Angle | 90deg |
GAN - Insert Rake Angle | 0deg |
APMX - Depth Of Cut Maximum | 8mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.56mm |
ORDCODE | SBEX 12 04 ZZ H1P |
CHANGEDATE | 2022-04-06 03:02:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SB1204ZZ_1 |
Grade | H1P |
SUBSTRATE | HW |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | False |
