Sandvik Coromant SCLCL 1212F 09-M CoroTurn™ 107 shank tool for turning

R 1 668,65 inc. vat
In stock
SKU
5749291
CoroTurn® 107 shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 80mm
TQ - Torque 3Nm
WT - Weight Of Item 0.088kg
OAL - Overall Length 80mm
OHX - Maximum Overhang 15.6mm
LSC - Clamping Length 64.4mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 16mm
HF - Functional Height 12mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.79375mm
Insert Thickness 3.96875mm
H - Shank Height 12mm
B - Shank Width 12mm
ORDCODE SCLCL 1212F 09-M
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A1212_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:49:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_CC09T3_2
Hand L

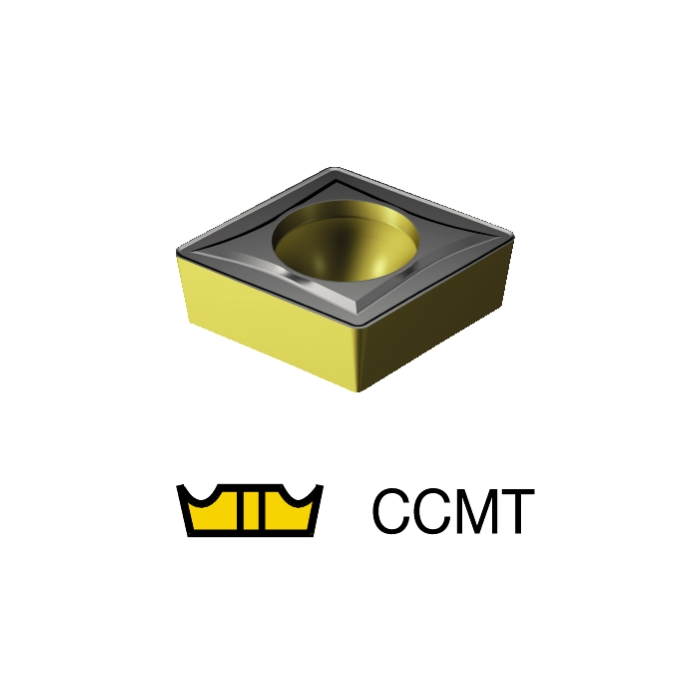

MIID - Master Insert Identification CCMT 09 T3 08
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
