R 3 896,20
inc. vat
Out of stock
SKU
5749474
Top Lok boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

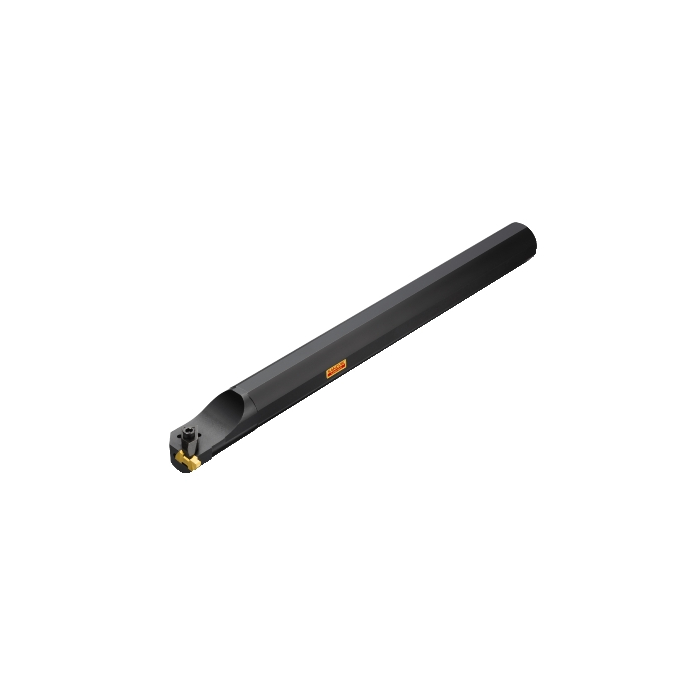

Top Lok boring bar for grooving
DCON - Connection Diameter | 25.4mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 304.8mm |
BD - Body Diameter | 25.4mm |
WT - Weight Of Item | 1.08kg |
OAL - Overall Length | 304.8mm |
OHX - Maximum Overhang | 63.5mm |
LSC - Clamping Length | 241.3mm |
KAPR - Tool Cutting Edge Angle | 90deg |
DMIN - Minimum Bore Diameter | 34.93mm |
BAWS - Workpiece Side Body Angle | 90deg |
OHN - Minimum Overhang | 53.71mm |
WF - Functional Width | 17.4752mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 5.5626mm |
H - Shank Height | 23.114mm |
CDX - Cutting Depth Maximum | 2.8mm |
W1 - Insert Width | 3.81mm |
ORDCODE | SI-CTLHOL-08122 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_S1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-24 00:13:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL2R_1 |
Hand | L |
MIID - Master Insert Identification | TLG-2125R |
SSC - Insert Seat Size Code | 2 |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
