Sandvik Coromant SI40-QC-C5-090 DIN 2079 to Coromant Capto™ adaptor with Quick change
R 19 428,10
inc. vat
Out of stock
SKU
7027562

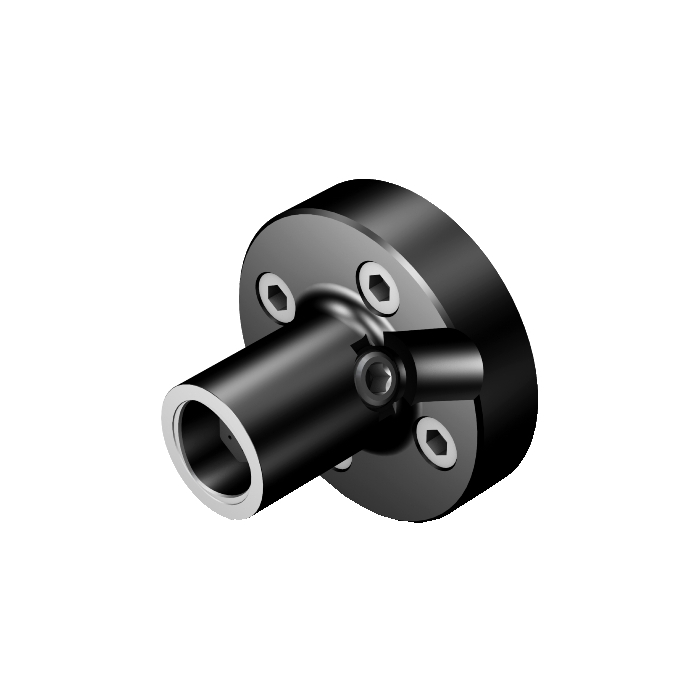

DIN 2079 to Coromant Capto® adaptor with Quick change
Reliable nationwide shipping
Delivery in 4 - 5 days
DIN 2079 to Coromant Capto® adaptor with Quick change
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 90mm |
| BD - Body Diameter | 110mm |
| LB - Body Length | 102mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 70Nm |
| WT - Weight Of Item | 2.295kg |
| OAL - Overall Length | 102mm |
| OHX - Maximum Overhang | 90mm |
| DBC - Diameter Bolt Circle | 66.7mm |
| ORDCODE | SI40-QC-C5-090 |
| ADINTMS - Adaptive Interface Machine Direction | M_BLTDIN1_C0667_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 13:01:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
