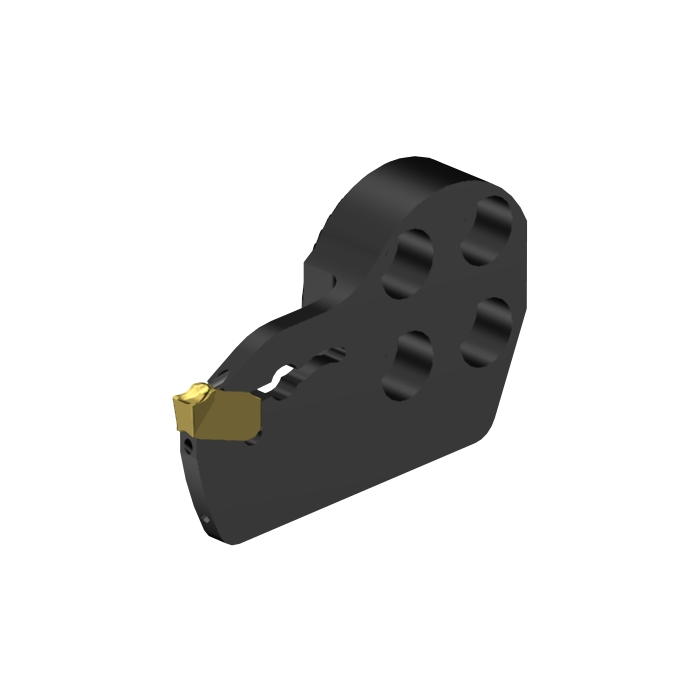

Sandvik Coromant SL-QD-LGG22C25 CoroCut™ QD head for grooving
R 3 636,30
inc. vat
In stock
SKU
6427817
CoroCut® QD head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® QD head for grooving
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 9mm |
| WT - Weight Of Item | 0.038kg |
| OAL - Overall Length | 12.9mm |
| OHX - Maximum Overhang | 9mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 70mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 36.1mm |
| HF - Functional Height | 0.1mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 3.1mm |
| CW - Cutting Width | 3mm |
| CDX - Cutting Depth Maximum | 22mm |
| ORDCODE | SL-QD-LGG22C25 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:09:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CMG_1 |
| Hand | L |
| MIID - Master Insert Identification | QD-NG-0300-0002-CM |
| SSC - Insert Seat Size Code | G |
| CXST - Coolant Exit Supply Type. | 3 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
