Sandvik Coromant SL70-80 40-RF CoroTurn™ SL quick change to CoroTurn™ SL70 adaptor
R 8 648,00
inc. vat
Out of stock
SKU
5749998

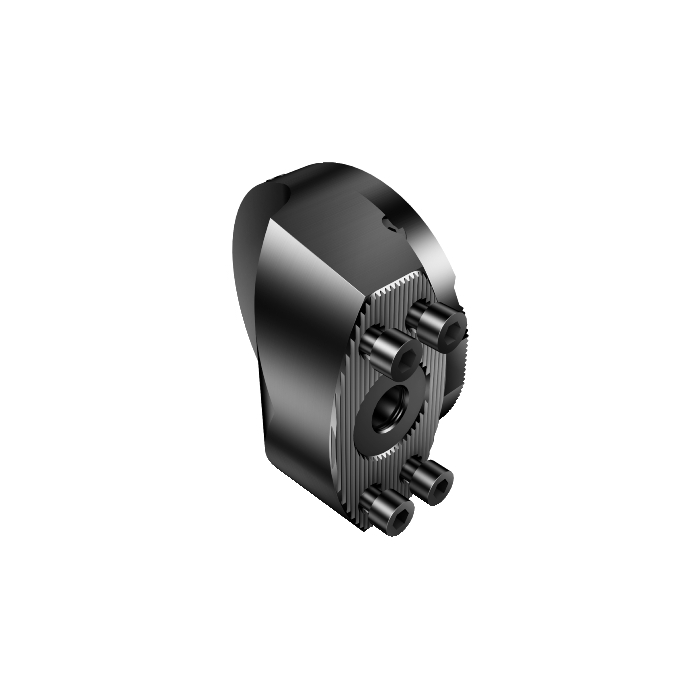

CoroTurn® SL quick change to CoroTurn® SL70 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® SL quick change to CoroTurn® SL70 adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 28mm |
| BD - Body Diameter | 80mm |
| LB - Body Length | 28mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 30Nm |
| WT - Weight Of Item | 1.38kg |
| OAL - Overall Length | 48mm |
| OHX - Maximum Overhang | 28mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| OHN - Minimum Overhang | 28mm |
| WF - Functional Width | 40mm |
| HF - Functional Height | 0mm |
| H - Shank Height | 37.5mm |
| LPR - Protruding Length | 48mm |
| WSC - Clamping Width | 70mm |
| ORDCODE | SL70-80 40-RF |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDQB_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA1_C0700_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 07:24:00.000 |
| Hand | L |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
