Sandvik Coromant SL70-CRDCR-50-09 T-Max™ head for turning
R 6 279,00
inc. vat
In stock
SKU
5923435
T-Max® head for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® head for turning
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 16.5mm |
| BD - Body Diameter | 70mm |
| TQ - Torque | 7.5Nm |
| WT - Weight Of Item | 0.425kg |
| OAL - Overall Length | 24.3mm |
| OHX - Maximum Overhang | 16.5mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 125mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 71mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 4.7625mm |
| Insert Thickness | 7.9375mm |
| CDX - Cutting Depth Maximum | 50mm |
| DAXN - Minimum Axial Groove Outside Diameter | 500mm |
| WSC - Clamping Width | 70mm |
| ORDCODE | SL70-CRDCR-50-09 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0700_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-25 08:30:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC0907_1 |
| Hand | R |

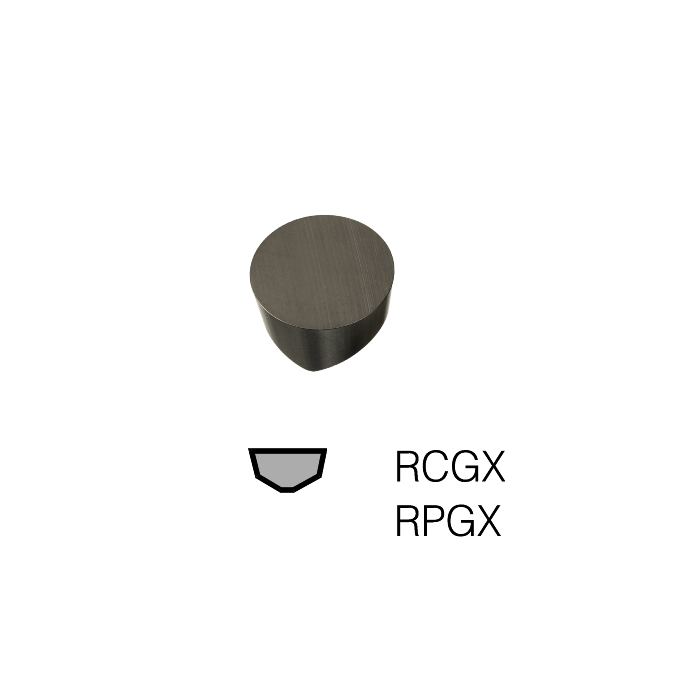

| MIID - Master Insert Identification | RCGX 09 07 00 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 09 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
