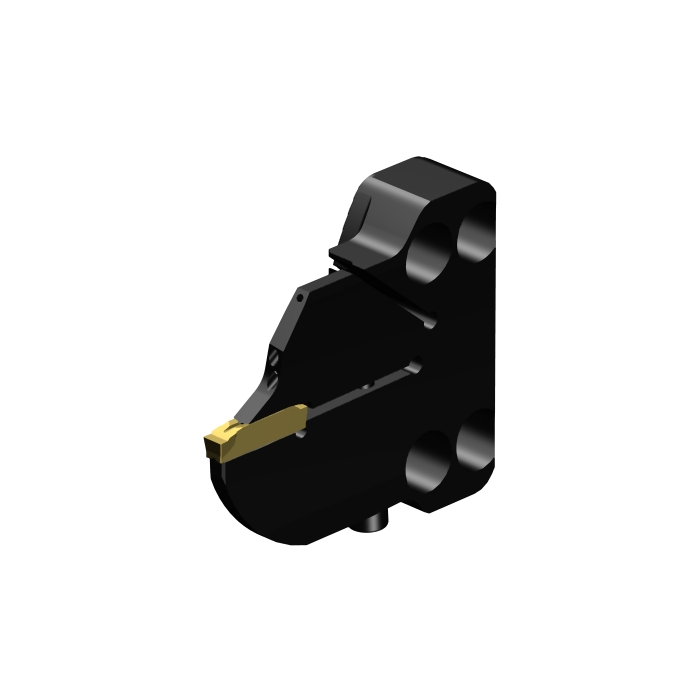

Sandvik Coromant SL70-L123K40B168A-HP CoroCut™ 1-2 head for face grooving
Next
Sandvik Coromant SL70-L123J40B290A-HP CoroCut™ 1-2 head for face grooving
Previous
![Sandvik Coromant SL70-L123K40B168A-HP CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/531931fa0/sandvik-coromant-sl70-l123k40b168a-hp-corocuttm-1-2-head-for-face-grooving.jpg)
![Sandvik Coromant SL70-L123J40B290A-HP CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5319198a6/sandvik-coromant-sl70-l123j40b290a-hp-corocuttm-1-2-head-for-face-grooving.jpg)
R 7 537,10
inc. vat
In stock
SKU
5782650
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
CP - Coolant Pressure | 8000000Pa |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 17.5mm |
TQ - Torque | 5.6Nm |
WT - Weight Of Item | 0.317kg |
OAL - Overall Length | 26.1mm |
OHX - Maximum Overhang | 15mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 66mm |
HF - Functional Height | 0.1mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
LPR - Protruding Length | 18.3mm |
CW - Cutting Width | 5mm |
CDX - Cutting Depth Maximum | 40mm |
DAXN - Minimum Axial Groove Outside Diameter | 300mm |
WSC - Clamping Width | 70mm |
DAXX - Maximum Axial Groove Outside Diameter | 500mm |
ORDCODE | SL70-L123J40B290B-HP |
ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0700_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 7 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-05 15:34:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_8 |
Hand | L |
MIID - Master Insert Identification | N123J2-0500-0004-TF |
SSC - Insert Seat Size Code | J |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
