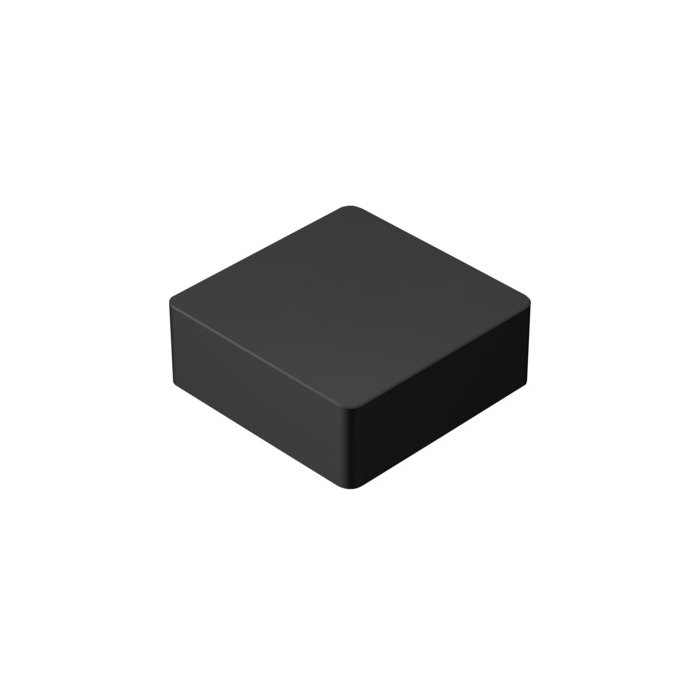

Sandvik Coromant SNGN120712T01020 650 T-Max™ insert for turning

R 257,60 inc. vat
In stock
SKU
5749747
T-Max® insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 5.1g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.1906mm
Insert Thickness 7.9375mm
LE - Cutting Edge Effective Length 11.5mm
L - Cutting Edge Length 12.7mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 20deg
ORDCODE SNGN120712T01020 650
CHANGEDATE 2021-12-17 19:07:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN1207_1
Grade 650
SUBSTRATE CM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
