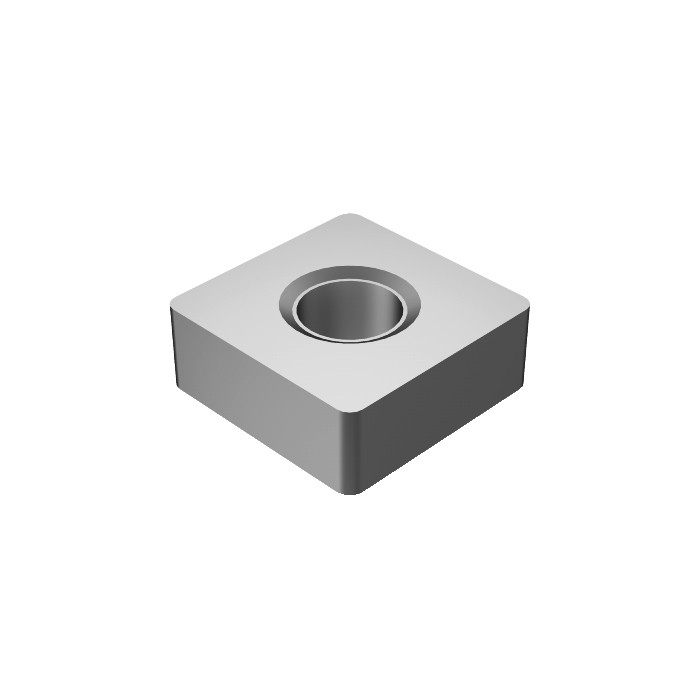

Sandvik Coromant SNMA 12 04 08 H1P T-Max™ P insert for turning

R 169,05 inc. vat
Out of stock
SKU
5749798
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 10.3g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.7938mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 11.9mm
L - Cutting Edge Length 12.7mm
ORDCODE SNMA 12 04 08 H1P
CHANGEDATE 2021-12-21 10:41:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN1204_1
Grade H1P
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation NMA
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
