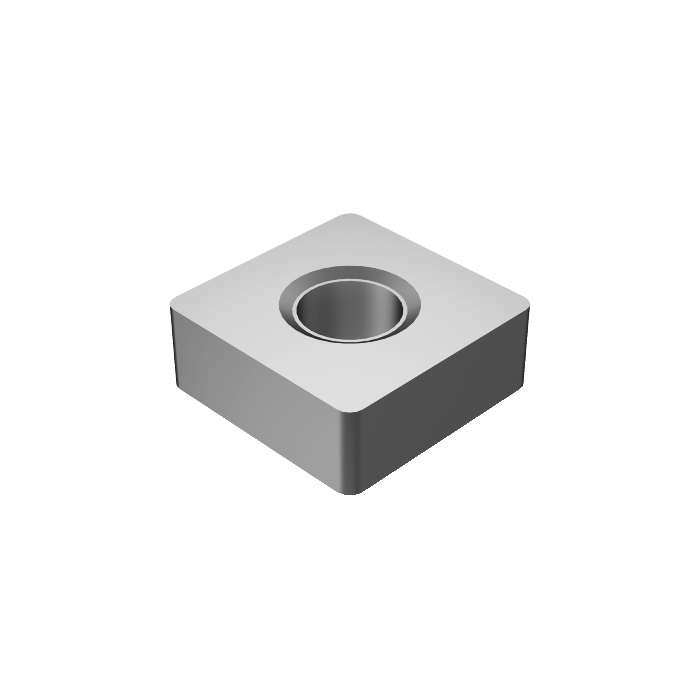

Sandvik Coromant SNMA 12 04 12 H1P T-Max™ P insert for turning
R 169,05
inc. vat
Out of stock
SKU
5749758
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.009kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 1.1906mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 5.156mm |
| LE - Cutting Edge Effective Length | 11.5mm |
| L - Cutting Edge Length | 12.7mm |
| ORDCODE | SNMA 12 04 12 H1P |
| CHANGEDATE | 2021-12-21 10:41:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SN1204_1 |
| Grade | H1P |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | NMA |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | False |
