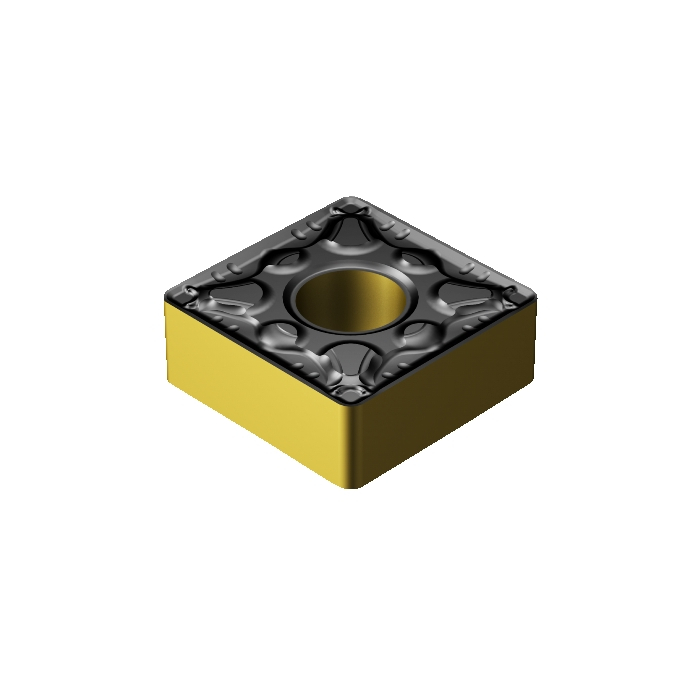

Sandvik Coromant SNMG 09 03 08-PM 4335 T-Max™ P insert for turning

R 158,70 inc. vat
In stock
SKU
7080840
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 3.81mm
LE - Cutting Edge Effective Length 8.725mm
L - Cutting Edge Length 9.525mm
ORDCODE SNMG 09 03 08-PM 4335
CHANGEDATE 2022-09-23 16:29:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN0903_1
Grade 4335
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
