Sandvik Coromant SNMG 15 06 16-QM 1115 T-Max™ P insert for turning
Next
Sandvik Coromant SNMG 12 04 04-MF 5015 T-Max™ P insert for turning
Previous
![Sandvik Coromant SNMG 15 06 16-QM 1115 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/49590ab6e/sandvik-coromant-snmg-15-06-16-qm-1115-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant SNMG 12 04 04-MF 5015 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/495882881/sandvik-coromant-snmg-12-04-04-mf-5015-t-maxtm-p-insert-for-turning.jpg)
R 235,75
inc. vat
In stock
SKU
5750268

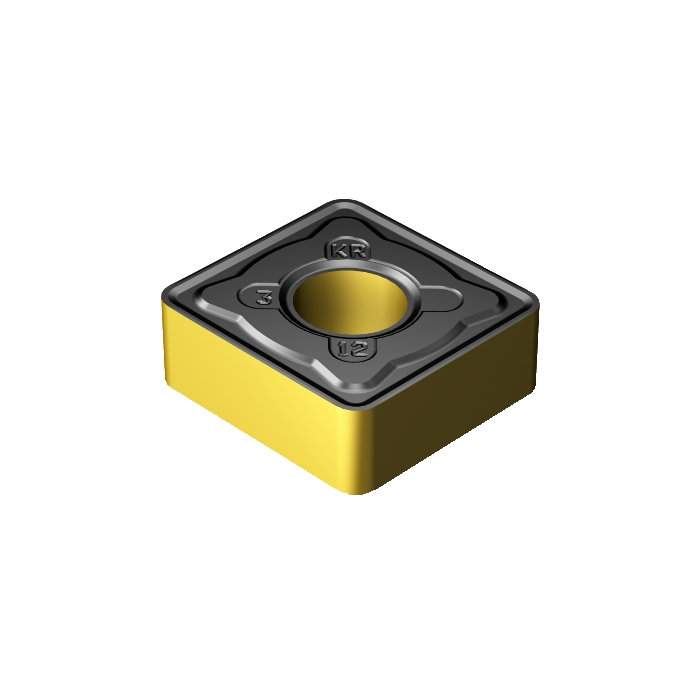

T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 8.9g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 11.5mm |
L - Cutting Edge Length | 12.7mm |
ORDCODE | SNMG 12 04 12-KR 3205 |
CHANGEDATE | 2021-12-17 19:11:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SN1204_1 |
Grade | 3205 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KR |
CEDC - Cutting Edge Count | 8 |
WEP - Wiper Edge Property | False |
