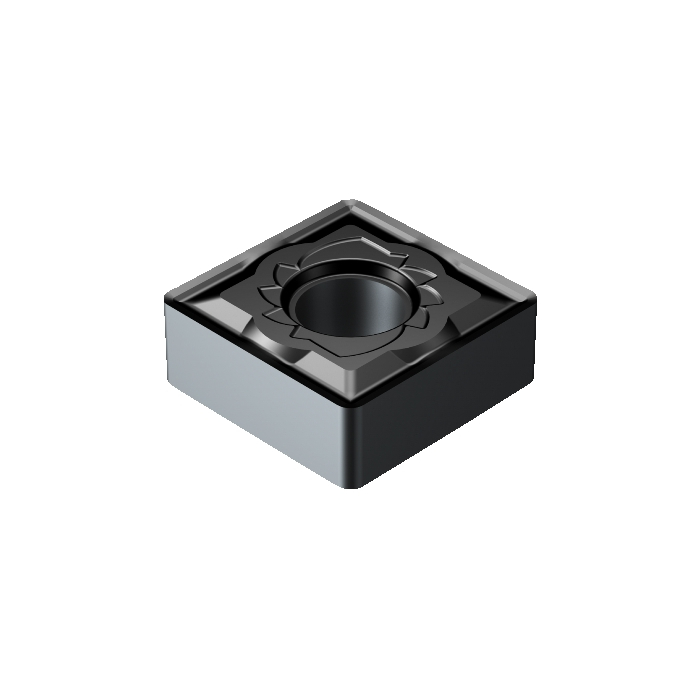

Sandvik Coromant SNMG 12 04 16-SM 1105 T-Max™ P insert for turning

R 234,60 inc. vat
In stock
SKU
5915096
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 9.2g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.5875mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 8.5mm
L - Cutting Edge Length 12.7mm
ORDCODE SNMG 12 04 16-SM 1105
CHANGEDATE 2021-12-17 20:33:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN1204_1
Grade 1105
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation SM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
