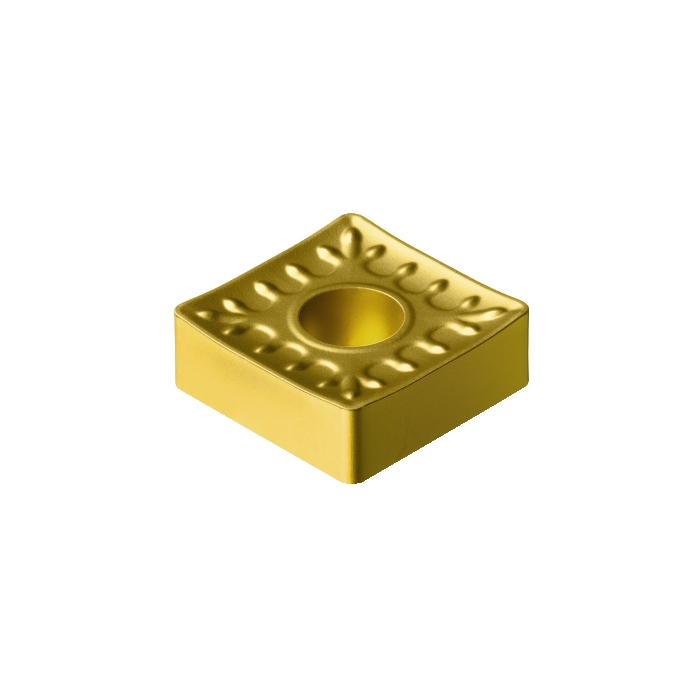

Sandvik Coromant SNMM 19 06 12-QR 235 T-Max™ P insert for turning

R 469,20 inc. vat
In stock
SKU
5751000
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.025kg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 19.05mm
RE - Corner Radius 1.1906mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 7.925mm
LE - Cutting Edge Effective Length 17.85mm
L - Cutting Edge Length 19.05mm
ORDCODE SNMM 19 06 12-QR 235
CHANGEDATE 2021-12-17 19:15:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code S
SSC - Insert Seat Size Code 19
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN1906_1
Grade 235
COATING CVD TiCN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation QR
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
