Sandvik Coromant SPMR 12 03 04 2025 T-Max™ S insert for turning
R 212,75
inc. vat
In stock
SKU
5751510

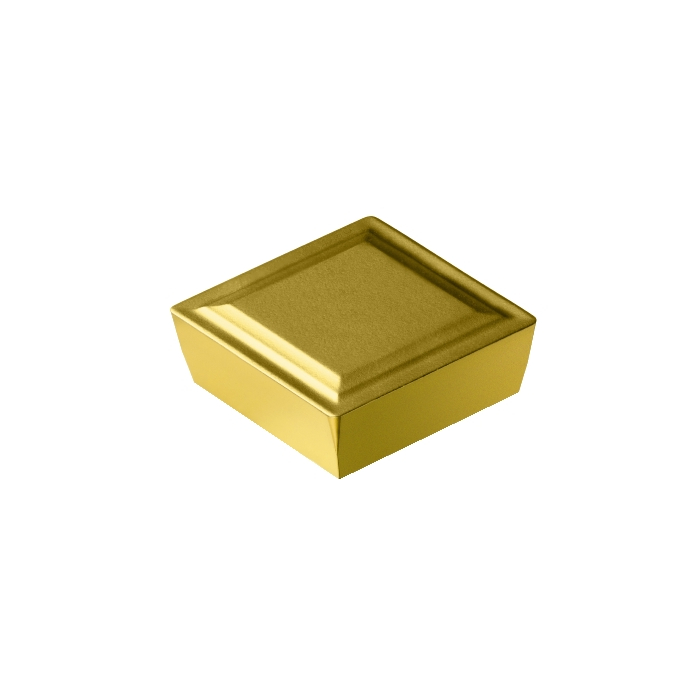

T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 7.5g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 3.175mm |
| LE - Cutting Edge Effective Length | 12.3mm |
| L - Cutting Edge Length | 12.7mm |
| ORDCODE | SPMR 12 03 04 2025 |
| CHANGEDATE | 2021-12-17 19:18:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SP1203_1 |
| Grade | 2025 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
