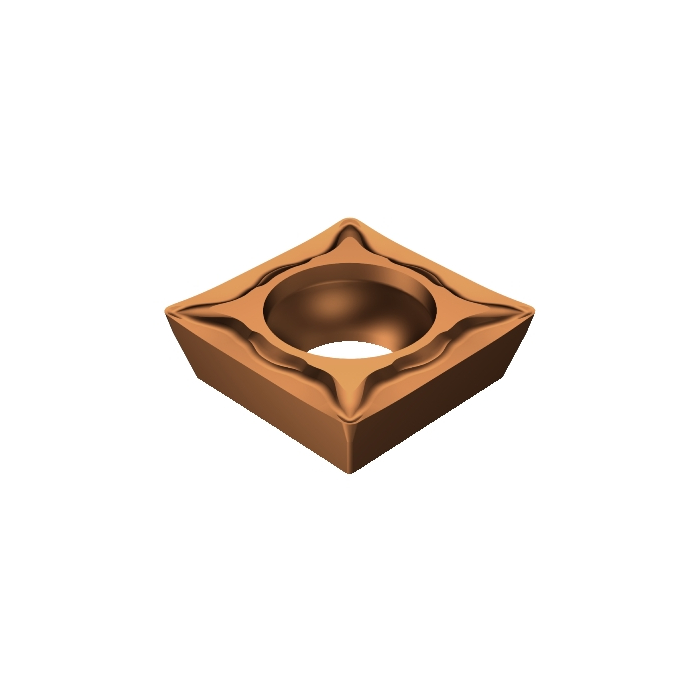

Sandvik Coromant SPMT 09 T3 08-UM 1125 CoroTurn™ 111 insert for turning
R 270,25
inc. vat
In stock
SKU
5751283
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 8.725mm |
| L - Cutting Edge Length | 9.525mm |
| ORDCODE | SPMT 09 T3 08-UM 1125 |
| CHANGEDATE | 2021-12-17 19:17:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SP09T3_1 |
| Grade | 1125 |
| COATING | PVD TiAlN+TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | UM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
