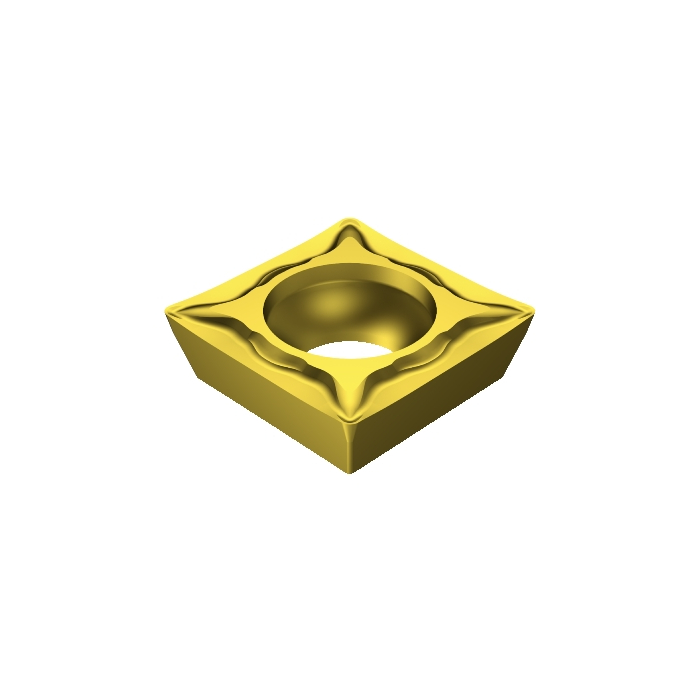

Sandvik Coromant SPMT 12 04 08-UM 1025 CoroTurn™ 111 insert for turning

R 263,35 inc. vat
Out of stock
SKU
5751095
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 7.5g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.7938mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.5mm
LE - Cutting Edge Effective Length 11.9mm
L - Cutting Edge Length 12.7mm
ORDCODE SPMT 12 04 08-UM 1025
CHANGEDATE 2021-12-17 19:16:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SPXT1204_1
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation UM
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
