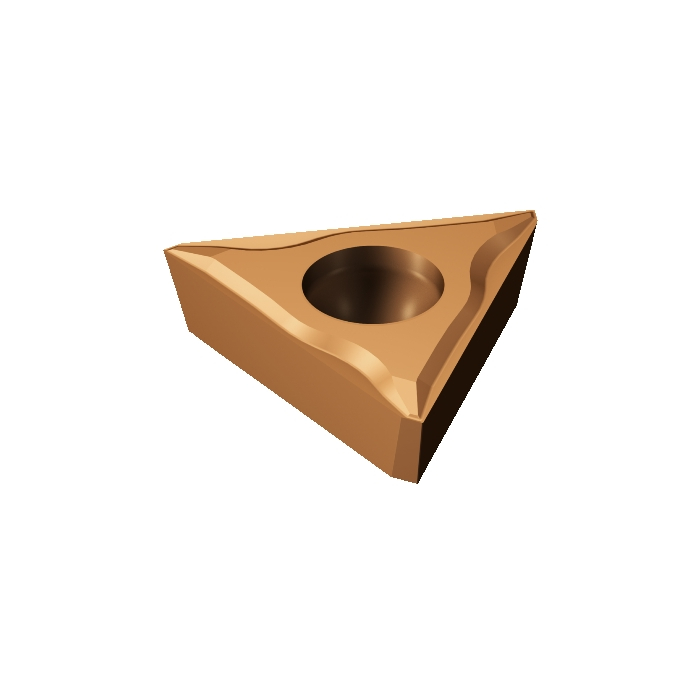

Sandvik Coromant TCEX 05 01 00R-F 1125 CoroTurn™ 107 insert for turning
R 379,50
inc. vat
In stock
SKU
5752345
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.4g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 3.175mm |
| RE - Corner Radius | 0.02mm |
| Insert Thickness | 1.4mm |
| D1 - Fixing Hole Diameter | 2.25mm |
| LE - Cutting Edge Effective Length | 5.57mm |
| L - Cutting Edge Length | 5.499mm |
| ORDCODE | TCEX 05 01 00R-F 1125 |
| CHANGEDATE | 2021-12-17 19:22:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 05 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC0501_1 |
| Grade | 1125 |
| COATING | PVD TiAlN+TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | F |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
