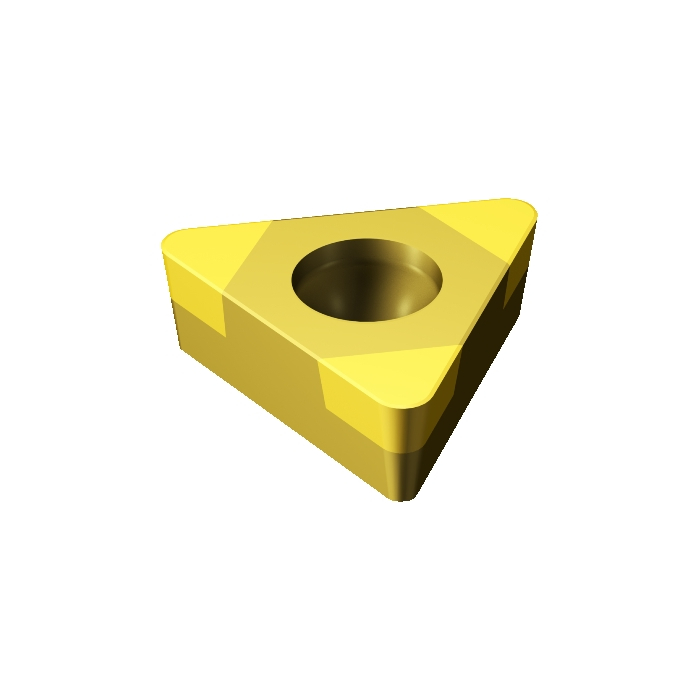

Sandvik Coromant TCGT 09 02 04R-K 1125 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant TCGT 11 03 02-UM 1115 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant TCGT 09 02 04R-K 1125 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/501826aad/sandvik-coromant-tcgt-09-02-04r-k-1125-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant TCGT 11 03 02-UM 1115 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/50180d41c/sandvik-coromant-tcgt-11-03-02-um-1115-coroturntm-107-insert-for-turning.jpg)
R 1 485,80
inc. vat
In stock
SKU
5752111
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.004kg |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 2.38125mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 2.9mm |
L - Cutting Edge Length | 10.999mm |
BN - Face Land Width | 0.1mm |
GB - Face Land Angle | 20deg |
ORDCODE | TCGW110208S01020F 7015 |
CHANGEDATE | 2021-12-17 19:20:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 11 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC1102_1 |
Grade | 7015 |
COATING | PVD TiN |
SUBSTRATE | BC |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
