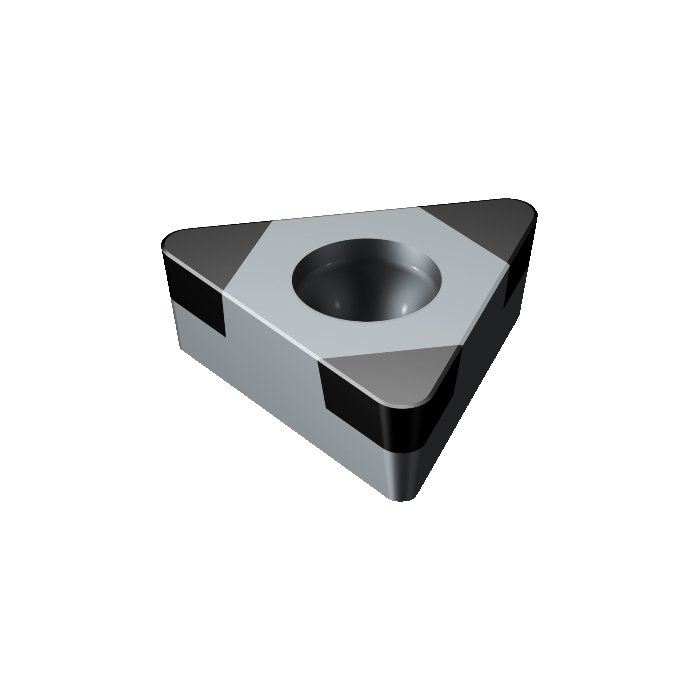

Sandvik Coromant TCGW110208S01530F 7025 CoroTurn™ 107 insert for turning
R 1 485,80
inc. vat
In stock
SKU
5772709
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.2g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 2mm |
| L - Cutting Edge Length | 10.999mm |
| BN - Face Land Width | 0.15mm |
| GB - Face Land Angle | 30deg |
| ORDCODE | TCGW110208S01530F 7025 |
| CHANGEDATE | 2021-12-17 20:16:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC1102_1 |
| Grade | 7025 |
| SUBSTRATE | BL |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
