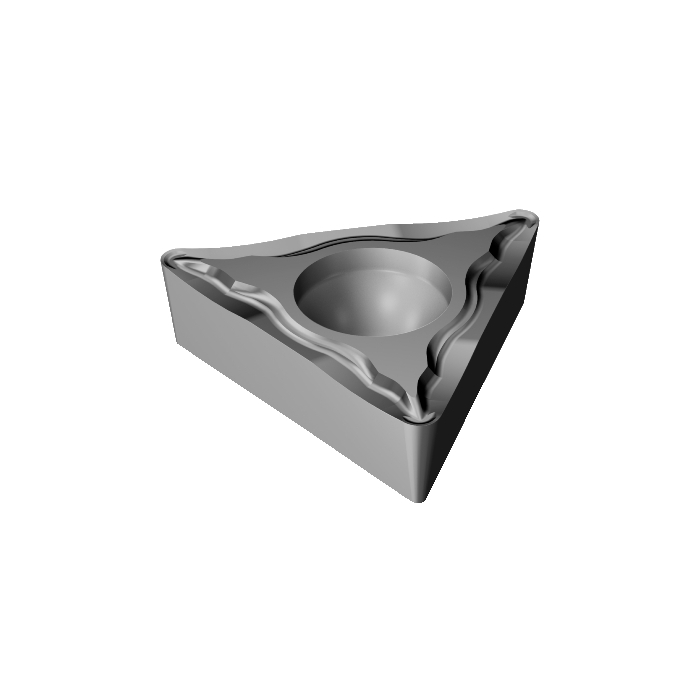

Sandvik Coromant TCMT 11 02 04-UM H13A CoroTurn™ 107 insert for turning

R 133,40 inc. vat
In stock
SKU
5752139
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.5g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.3969mm
Insert Thickness 2.38125mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 10.34mm
L - Cutting Edge Length 10.999mm
ORDCODE TCMT 11 02 04-UM H13A
CHANGEDATE 2021-12-17 19:21:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TC1102_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation UM
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
