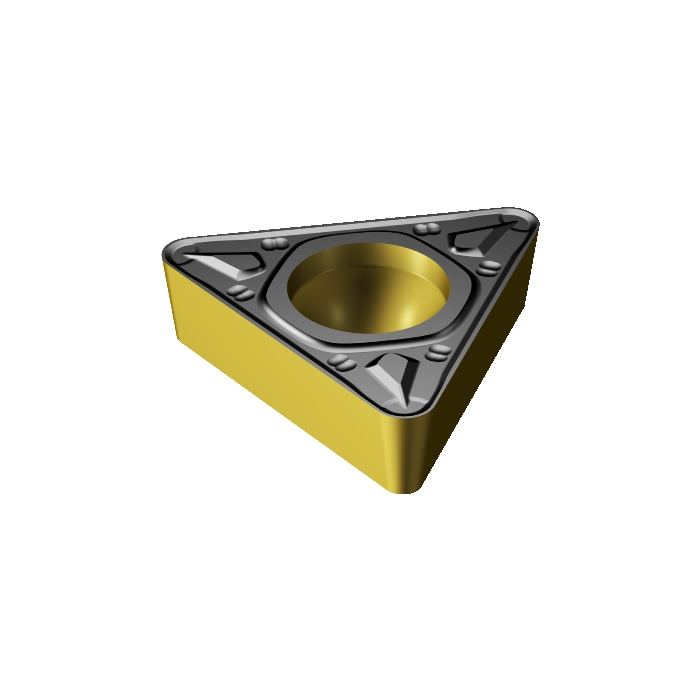

Sandvik Coromant TCMT 22 04 12-KR 3210 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant TCMT 22 04 08-KM 3210 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant TCMT 22 04 12-KR 3210 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/605424100/sandvik-coromant-tcmt-22-04-12-kr-3210-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant TCMT 22 04 08-KM 3210 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6054099fb/sandvik-coromant-tcmt-22-04-08-km-3210-coroturntm-107-insert-for-turning.jpg)
R 322,00
inc. vat
In stock
SKU
6868356
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 11.3g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.5mm |
LE - Cutting Edge Effective Length | 21.197mm |
L - Cutting Edge Length | 21.997mm |
ORDCODE | TCMT 22 04 08-KR 3210 |
CHANGEDATE | 2021-12-17 21:41:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 22 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC2204_1 |
Grade | 3210 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KR |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
