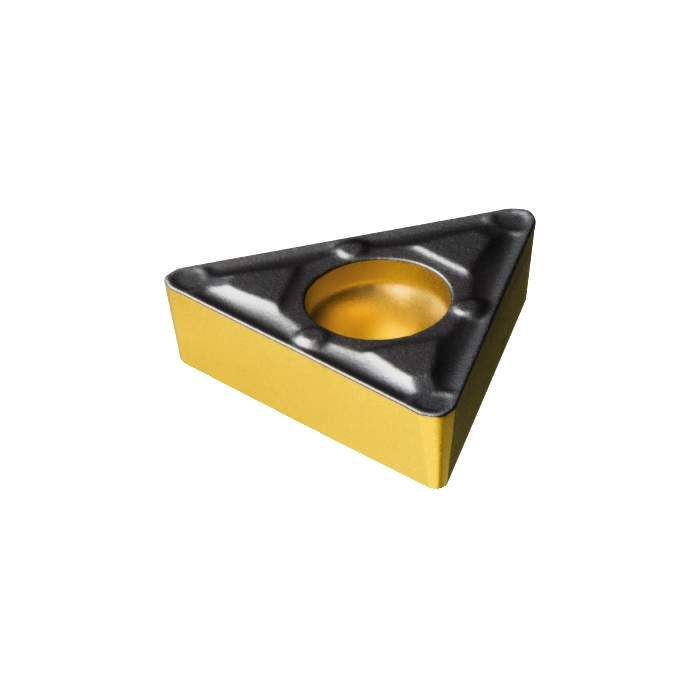

Sandvik Coromant TCMX 09 02 04-WF 1525 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant TCMX 09 02 04-WF 1115 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant TCMX 09 02 04-WF 1525 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/50566dbd4/sandvik-coromant-tcmx-09-02-04-wf-1525-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant TCMX 09 02 04-WF 1115 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/50562ab64/sandvik-coromant-tcmx-09-02-04-wf-1115-coroturntm-107-insert-for-turning.jpg)
R 177,10
inc. vat
In stock
SKU
5752982
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 5.55625mm |
RE - Corner Radius | 0.3969mm |
Insert Thickness | 2.38125mm |
D1 - Fixing Hole Diameter | 2.5mm |
LE - Cutting Edge Effective Length | 8.97mm |
L - Cutting Edge Length | 9.624mm |
KRINS - Major Cutting Edge Angle | 91deg |
BS - Wiper Edge Length | 0.55mm |
ORDCODE | TCMX 09 02 04-WF 1515 |
CHANGEDATE | 2021-12-17 19:28:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 09 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC0902_1 |
Grade | 1515 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | WF |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | True |
