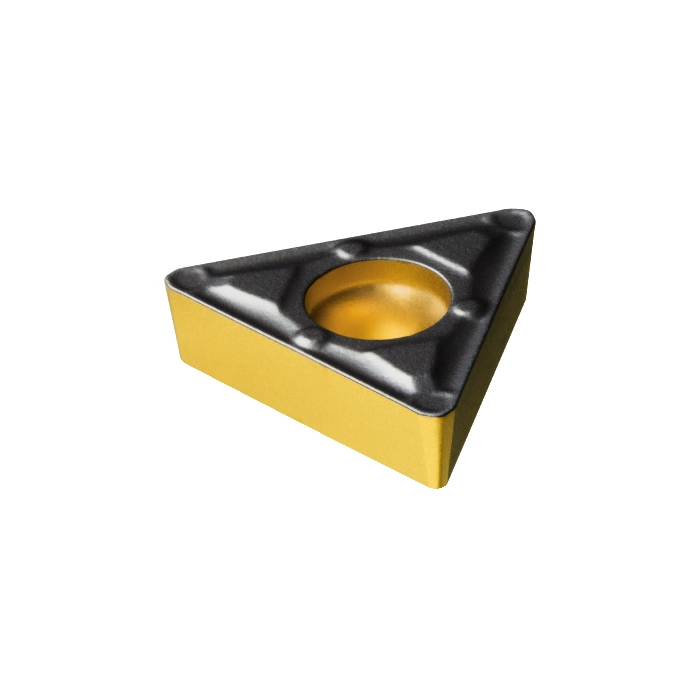

Sandvik Coromant TCMX 09 02 08-WF 3210 CoroTurn™ 107 insert for turning
R 177,10
inc. vat
In stock
SKU
6868359
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.001kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 5.55625mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.5mm |
| LE - Cutting Edge Effective Length | 8.57mm |
| L - Cutting Edge Length | 9.624mm |
| KRINS - Major Cutting Edge Angle | 91deg |
| BS - Wiper Edge Length | 0.55mm |
| ORDCODE | TCMX 09 02 08-WF 3210 |
| CHANGEDATE | 2021-12-17 21:41:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC0902_1 |
| Grade | 3210 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | True |
