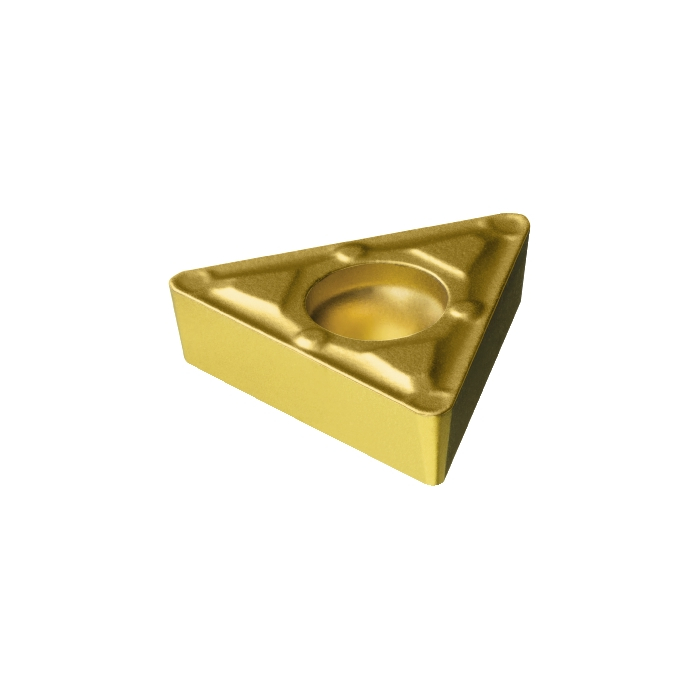

Sandvik Coromant TCMX 16 T3 08-WF 1025 CoroTurn™ 107 insert for turning

R 253,00 inc. vat
Out of stock
SKU
5752895
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.005kg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 15.6978mm
L - Cutting Edge Length 16.4978mm
KRINS - Major Cutting Edge Angle 91deg
BS - Wiper Edge Length 0.5mm
ORDCODE TCMX 16 T3 08-WF 1025
CHANGEDATE 2021-12-21 10:24:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TC16T3_1
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WF
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property True
