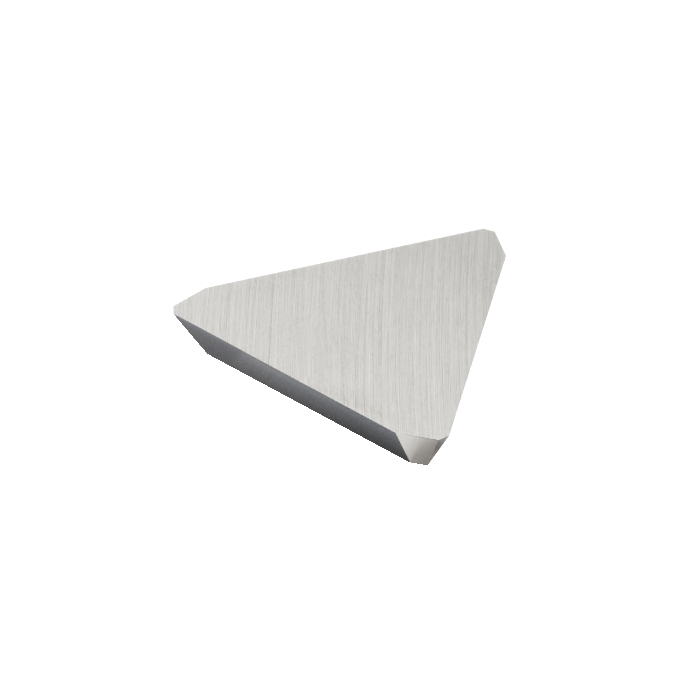

Sandvik Coromant TFAN 22 03 PF R H10 Insert for milling
R 427,80
inc. vat
Out of stock
SKU
5752928
Insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.008kg |
| AN - Clearance Angle Major | 25deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| Insert Thickness | 3.175mm |
| LE - Cutting Edge Effective Length | 18mm |
| L - Cutting Edge Length | 21.997mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 2.5mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 18mm |
| KCH - Corner Chamfer | 45deg |
| ORDCODE | TFAN 22 03 PF R H10 |
| CHANGEDATE | 2022-04-06 03:24:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TF2203PF_1 |
| Grade | H10 |
| SUBSTRATE | HF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | True |
