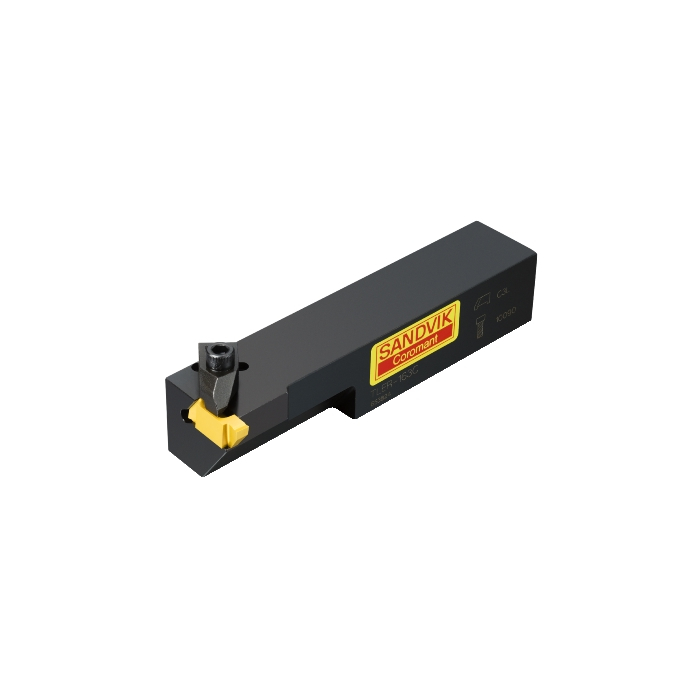

Sandvik Coromant TLEL-162C Top Lok shank tool for parting & grooving
R 2 674,90
inc. vat
Out of stock
SKU
5752999
Top Lok shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 127mm |
| WT - Weight Of Item | 1.25kg |
| OAL - Overall Length | 127mm |
| OHX - Maximum Overhang | 25.4mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 31.75mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 5.5626mm |
| H - Shank Height | 25.4mm |
| B - Shank Width | 25.4mm |
| CDX - Cutting Depth Maximum | 3.175mm |
| W1 - Insert Width | 3.81mm |
| ORDCODE | TLEL-162C |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1616_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 23:39:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL2R_1 |
| Hand | L |
| MIID - Master Insert Identification | TLG-2125R |
| SSC - Insert Seat Size Code | 2 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
