Sandvik Coromant TLG-3088L 1125 Top Lok insert for grooving
Next
Sandvik Coromant TLG-3094R 2135 Top Lok insert for grooving
Previous
![Sandvik Coromant TLG-3088L 1125 Top Lok insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/50857939d/sandvik-coromant-tlg-3088l-1125-top-lok-insert-for-grooving.jpg)
![Sandvik Coromant TLG-3094R 2135 Top Lok insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/50854a06f/sandvik-coromant-tlg-3094r-2135-top-lok-insert-for-grooving.jpg)
R 652,05
inc. vat
In stock
SKU
5753643

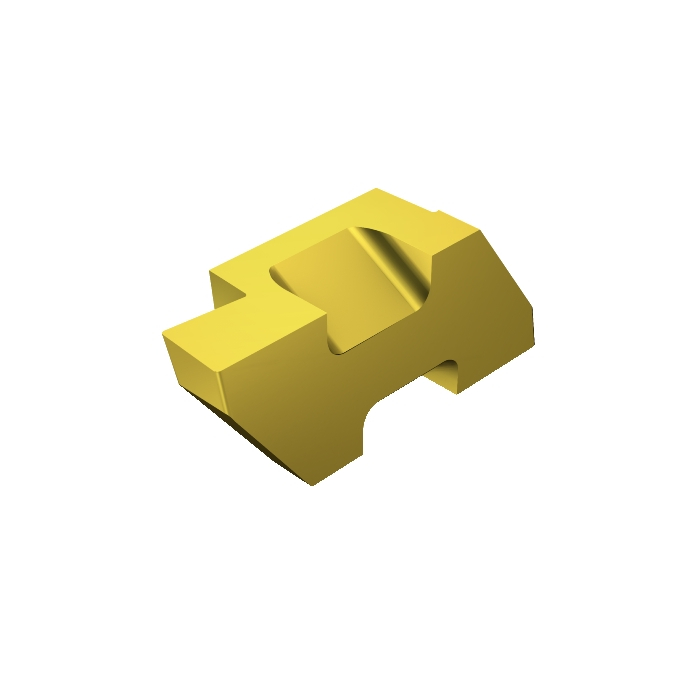

Top Lok insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 9.4g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 10deg |
Insert Thickness | 8.7376mm |
CW - Cutting Width | 1.1938mm |
CWTOLL - Cutting Width Lower Tolerance | -0.0254mm |
CWTOLU - Cutting Width Upper Tolerance | 0.0254mm |
REL - Corner Radius Left | 0.1905mm |
RER - Corner Radius Right | 0.1905mm |
CDX - Cutting Depth Maximum | 1.905mm |
W1 - Insert Width | 4.953mm |
ORDCODE | TLG-3047R 2135 |
CHANGEDATE | 2022-06-23 11:15:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 5 |
SSC - Insert Seat Size Code | 3 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CL3R_1 |
Grade | 2135 |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 2 |
