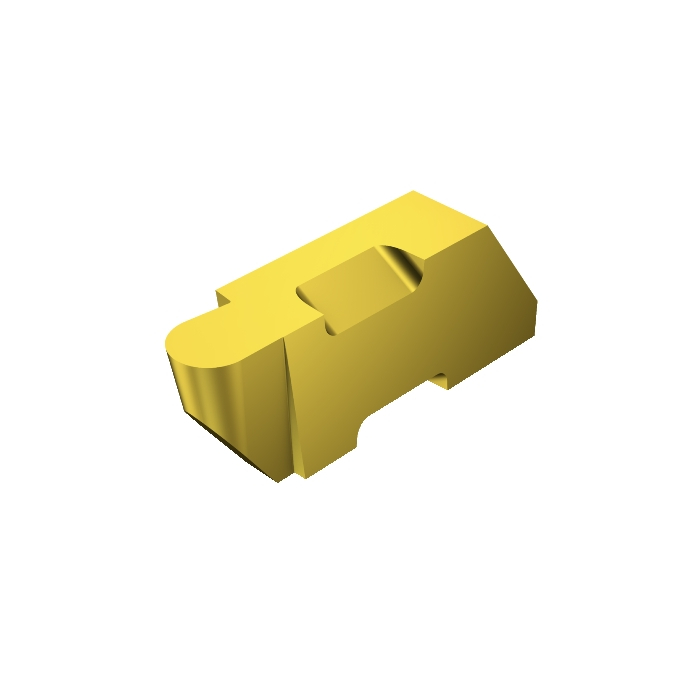

Sandvik Coromant TLR-3094R 2135 Top Lok insert for profiling

R 652,05 inc. vat
Out of stock
SKU
5753747
Top Lok insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok insert for profiling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.011kg
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 10deg
RE - Corner Radius 2.3876mm
Insert Thickness 8.7376mm
CW - Cutting Width 4.7752mm
CWTOLL - Cutting Width Lower Tolerance -0.0254mm
CWTOLU - Cutting Width Upper Tolerance 0.0254mm
CDX - Cutting Depth Maximum 3.81mm
W1 - Insert Width 4.953mm
ORDCODE TLR-3094R 2135
CHANGEDATE 2021-12-20 23:41:00.000
Hand R
IFS - Insert Mounting Style Code 5
SSC - Insert Seat Size Code 3
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CL3R_1
Grade 2135
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 2
