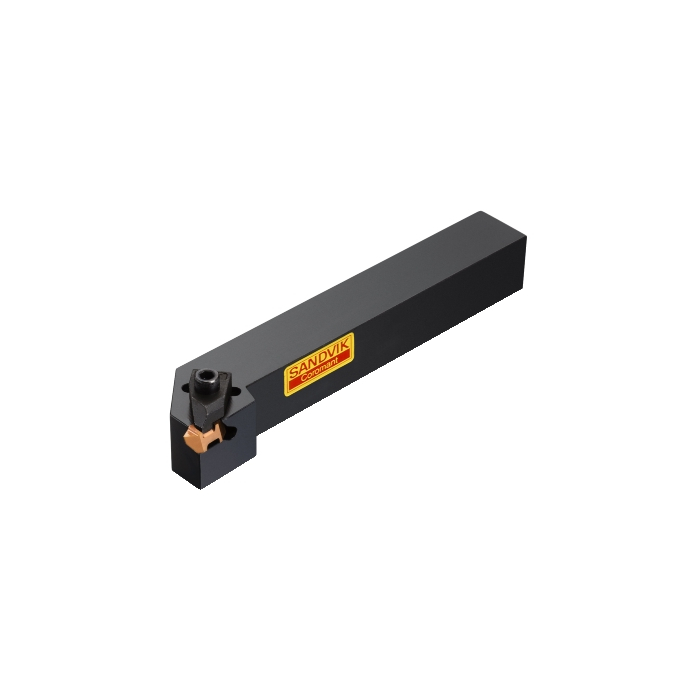

Sandvik Coromant TLSR-162C Top Lok shank tool for parting & grooving

Name: Sandvik Coromant TLSR-162C Top Lok shank tool for parting & grooving
SKU: 5753236
Price: 2674.90 ZAR
Availability: InStock

R 2 674,90 inc. vat

In stock

SKU

5753236

Top Lok shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Top Lok shank tool for parting and grooving

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	127mm
TQ - Torque	3Nm
WT - Weight Of Item	0.62kg
OAL - Overall Length	127mm
OHX - Maximum Overhang	33.02mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	31.75mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	5.5626mm
H - Shank Height	25.4mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	3.175mm
W1 - Insert Width	3.81mm
ORDCODE	TLSR-162C
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2021-12-20 23:30:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CL2R_1
Hand	R
MIID - Master Insert Identification	TLG-2125R
SSC - Insert Seat Size Code	2
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
