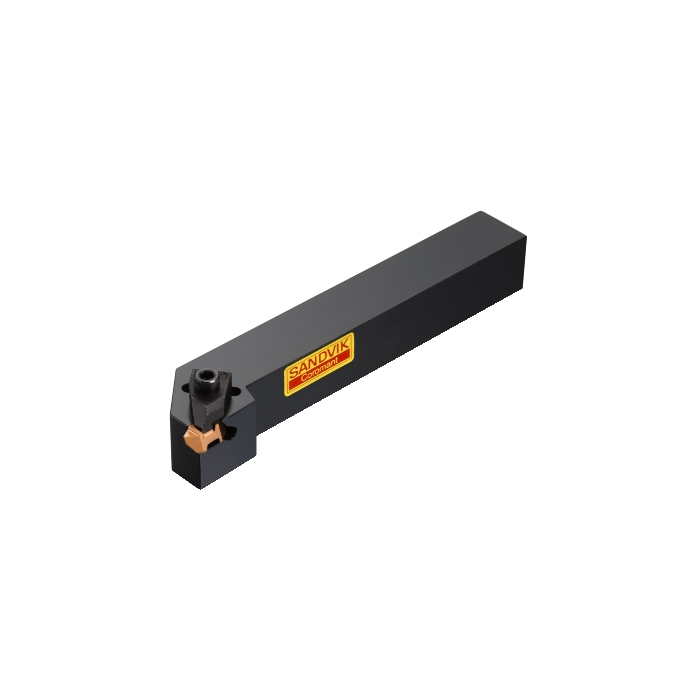

Sandvik Coromant TLSR 83D-S Top Lok shank tool for parting & grooving
R 2 188,45
inc. vat
In stock
SKU
5753632
Top Lok shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 152.4mm |
| TQ - Torque | 5Nm |
| WT - Weight Of Item | 0.2kg |
| OAL - Overall Length | 152.4mm |
| OHX - Maximum Overhang | 22.352mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 12.7mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 8.7376mm |
| H - Shank Height | 12.7mm |
| B - Shank Width | 12.7mm |
| CDX - Cutting Depth Maximum | 4.572mm |
| W1 - Insert Width | 4.953mm |
| ORDCODE | TLSR 83D-S |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B0808_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 23:35:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL3R_1 |
| Hand | R |
| MIID - Master Insert Identification | TLG-3189R |
| SSC - Insert Seat Size Code | 3 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
