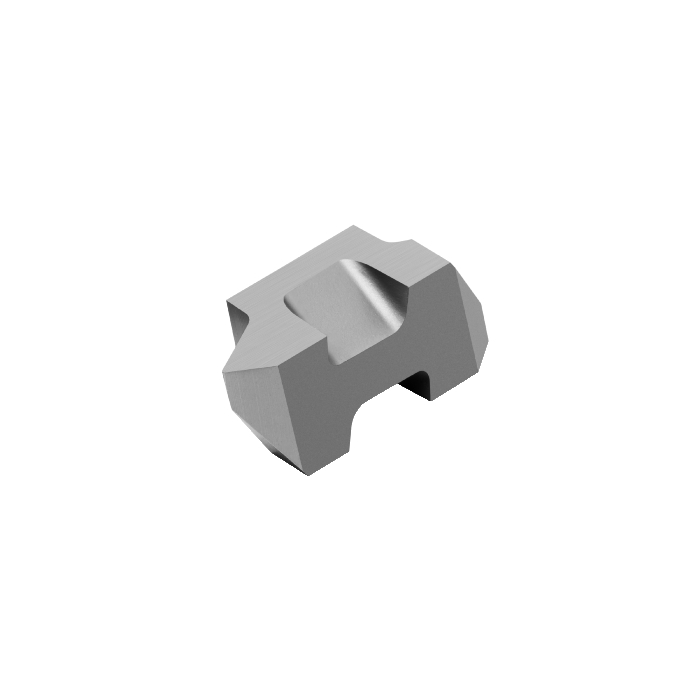

Sandvik Coromant TLTF-2L H13A Top Lok insert for thread turning
R 433,55
inc. vat
Out of stock
SKU
5753262
Top Lok insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3.2g |
| AN - Clearance Angle Major | 10deg |
| RE - Corner Radius | 0.076mm |
| Insert Thickness | 5.5626mm |
| W1 - Insert Width | 3.81mm |
| TPN - Minimum Thread Pitch | 0.6mm |
| TPX - Maximum Thread Pitch | 2mm |
| TPIN - Minimum Threads Per Inch | 12 |
| TPIX - Maximum Threads Per Inch | 44 |
| HA - Theoretical Thread Height | 1.575mm |
| PDX - Profile Distance Ex | 2.794mm |
| PDY - Profile Distance Ey | 0mm |
| ORDCODE | TLTF-2L H13A |
| CHANGEDATE | 2021-12-22 01:27:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 5 |
| SSC - Insert Seat Size Code | 2 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CL2L_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| THFT - Thread Form Type | VP60 |
| TPT - Thread Profile Type | P |
| TTP - Thread Type | EXT_INT |
| CEDC - Cutting Edge Count | 2 |
| NT - Tooth Count | 1 |
