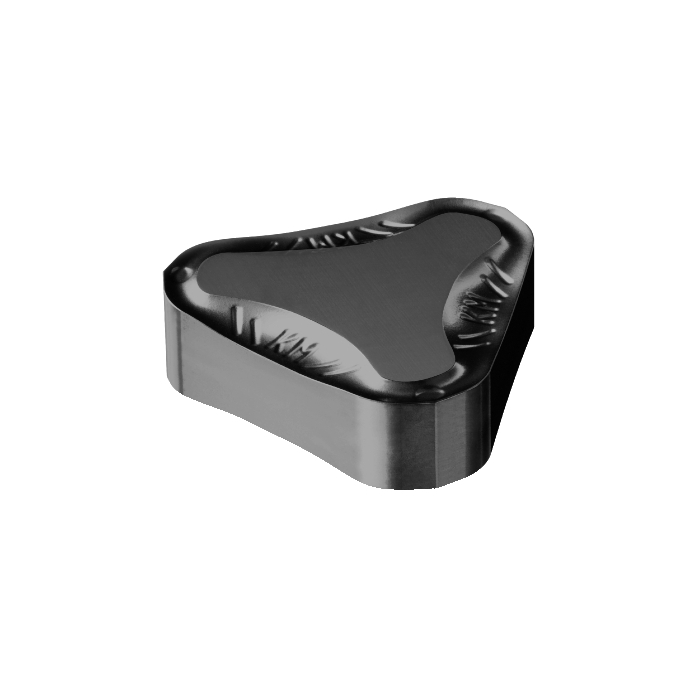

Sandvik Coromant TNEF 12 04 AN-KM K20D Auto Roughing insert for milling
R 414,00
inc. vat
In stock
SKU
5753269
Auto Roughing insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto Roughing insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 12g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 2mm |
| Insert Thickness | 4.7625mm |
| LE - Cutting Edge Effective Length | 12mm |
| L - Cutting Edge Length | 21.997mm |
| KRINS - Major Cutting Edge Angle | 45deg |
| BS - Wiper Edge Length | 1.25mm |
| GAN - Insert Rake Angle | 7deg |
| APMX - Depth Of Cut Maximum | 6mm |
| BSR - Wiper Edge Radius | 90mm |
| ORDCODE | TNEF 12 04 AN-KM K20D |
| CHANGEDATE | 2022-04-06 03:27:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN1204AN_1 |
| Grade | K20D |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | KM |
| CEDC - Cutting Edge Count | 6 |
| WEP - Wiper Edge Property | True |
