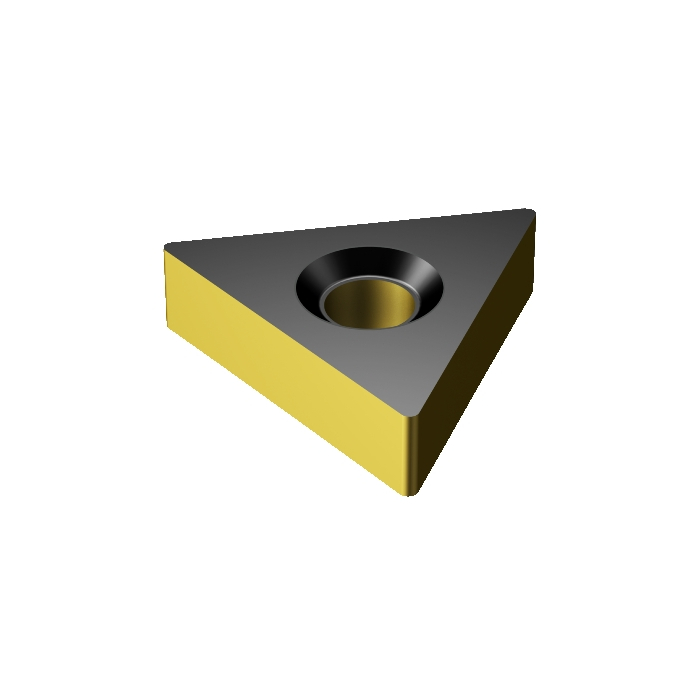

Sandvik Coromant TNMA 22 04 12-KR 3225 T-Max™ P insert for turning
Next
Sandvik Coromant TNMA 22 04 04-KR 3225 T-Max™ P insert for turning
Previous
![Sandvik Coromant TNMA 22 04 12-KR 3225 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/60766f1fb/sandvik-coromant-tnma-22-04-12-kr-3225-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant TNMA 22 04 04-KR 3225 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6076469b7/sandvik-coromant-tnma-22-04-04-kr-3225-t-maxtm-p-insert-for-turning.jpg)
R 284,05
inc. vat
In stock
SKU
6868607
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 13g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 21.197mm |
L - Cutting Edge Length | 21.997mm |
ORDCODE | TNMA 22 04 08-KR 3225 |
CHANGEDATE | 2022-09-23 20:21:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 22 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN2204_1 |
Grade | 3225 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KR |
CEDC - Cutting Edge Count | 6 |
WEP - Wiper Edge Property | False |
