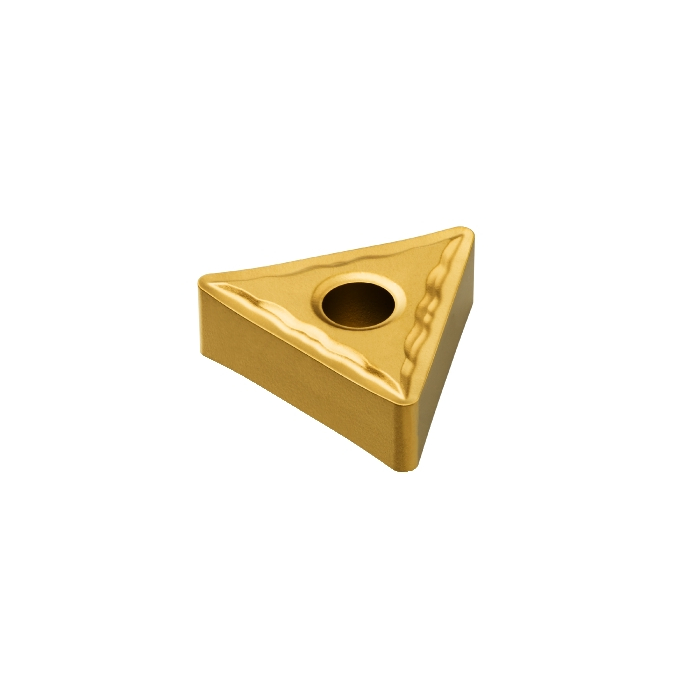

Sandvik Coromant TNMG 11 03 04-MF 235 T-Max™ P insert for turning

R 114,08 inc. vat
In stock
SKU
5753950
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.002kg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.3969mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 2.261mm
LE - Cutting Edge Effective Length 10.5985mm
L - Cutting Edge Length 10.999mm
ORDCODE TNMG 11 03 04-MF 235
CHANGEDATE 2021-12-17 19:32:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code T
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TN1103_1
Grade 235
COATING CVD TiCN+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MF
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
