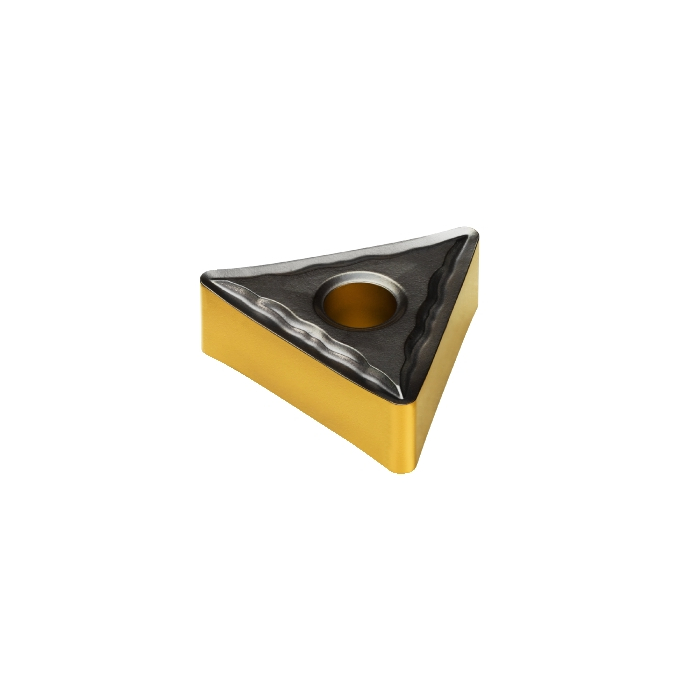

Sandvik Coromant TNMG 16 04 08-MF 4335 T-Max™ P insert for turning
Next
Sandvik Coromant SNMG 12 04 12-MF 4335 T-Max™ P insert for turning
Previous
![Sandvik Coromant TNMG 16 04 08-MF 4335 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/613154d06/sandvik-coromant-tnmg-16-04-08-mf-4335-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant SNMG 12 04 12-MF 4335 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/613132d57/sandvik-coromant-snmg-12-04-12-mf-4335-t-maxtm-p-insert-for-turning.jpg)
R 212,75
inc. vat
In stock
SKU
7080793
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 6g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.3969mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 3.81mm |
LE - Cutting Edge Effective Length | 16.0978mm |
L - Cutting Edge Length | 16.4978mm |
ORDCODE | TNMG 16 04 04-MF 4335 |
CHANGEDATE | 2021-12-17 21:48:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN1604_1 |
Grade | 4335 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MF |
CEDC - Cutting Edge Count | 6 |
WEP - Wiper Edge Property | False |
