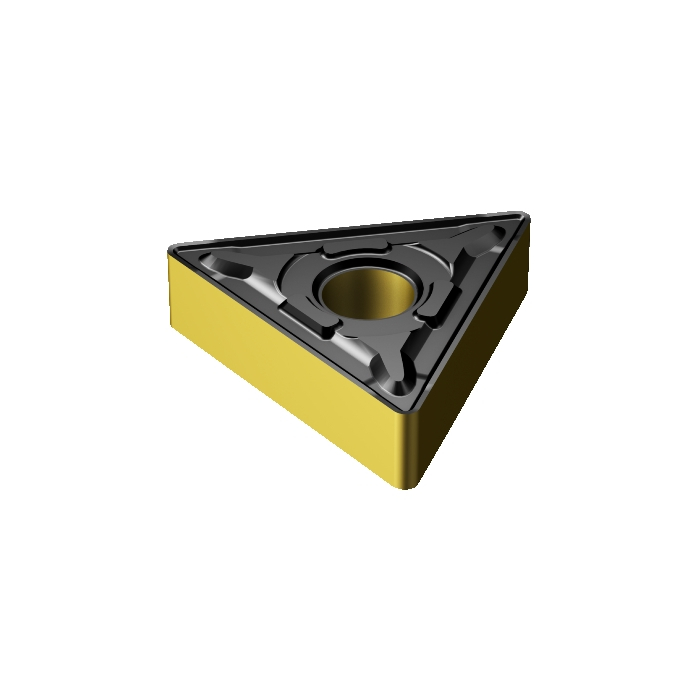

Sandvik Coromant TNMG 27 06 16-PR 4335 T-Max™ P insert for turning

R 503,70 inc. vat
In stock
SKU
7081119
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 15.875mm
RE - Corner Radius 1.5875mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 6.35mm
LE - Cutting Edge Effective Length 25.8963mm
L - Cutting Edge Length 27.4963mm
ORDCODE TNMG 27 06 16-PR 4335
CHANGEDATE 2022-09-23 20:29:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code T
SSC - Insert Seat Size Code 27
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TN2706_1
Grade 4335
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PR
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
