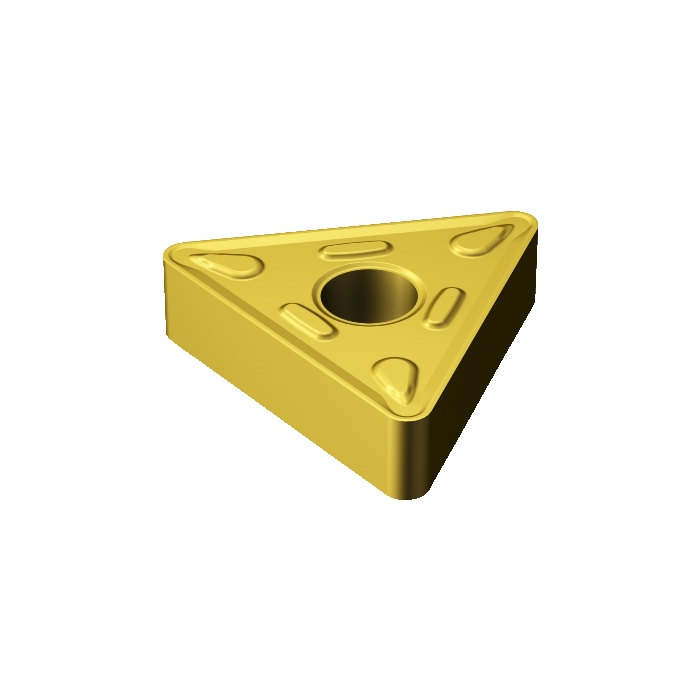

Sandvik Coromant TNMG 33 09 24-HM 2025 T-Max™ P insert for turning
R 849,85
inc. vat
In stock
SKU
5908017
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 51.9g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 19.05mm |
| RE - Corner Radius | 2.38125mm |
| Insert Thickness | 9.525mm |
| D1 - Fixing Hole Diameter | 7.925mm |
| LE - Cutting Edge Effective Length | 33mm |
| L - Cutting Edge Length | 32.9956mm |
| ORDCODE | TNMG 33 09 24-HM 2025 |
| CHANGEDATE | 2021-12-21 08:31:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 33 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN3309_1 |
| Grade | 2025 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | HM |
| CEDC - Cutting Edge Count | 6 |
| WEP - Wiper Edge Property | False |
