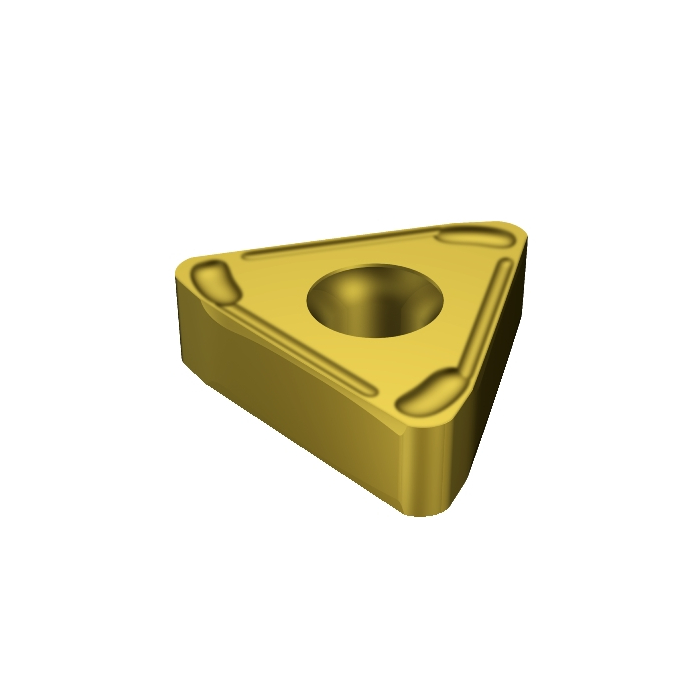

Sandvik Coromant TNMX 33 09 31-MF 2015 Insert for bar peeling
R 893,55
inc. vat
Out of stock
SKU
5754789
Insert for bar peeling
Reliable nationwide shipping
Delivery in 4 - 5 days
Insert for bar peeling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.055kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 19.05mm |
| RE - Corner Radius | 1.5875mm |
| Insert Thickness | 9.525mm |
| D1 - Fixing Hole Diameter | 7.93mm |
| LE - Cutting Edge Effective Length | 5mm |
| L - Cutting Edge Length | 32.9956mm |
| KRINS - Major Cutting Edge Angle | 120deg |
| BS - Wiper Edge Length | 21mm |
| APMX - Depth Of Cut Maximum | 1.3mm |
| KCH - Corner Chamfer | 105deg |
| ORDCODE | TNMX 33 09 31-MF 2015 |
| CHANGEDATE | 2021-12-17 19:41:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 33 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TN3309_1 |
| Grade | 2015 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | MF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | True |
