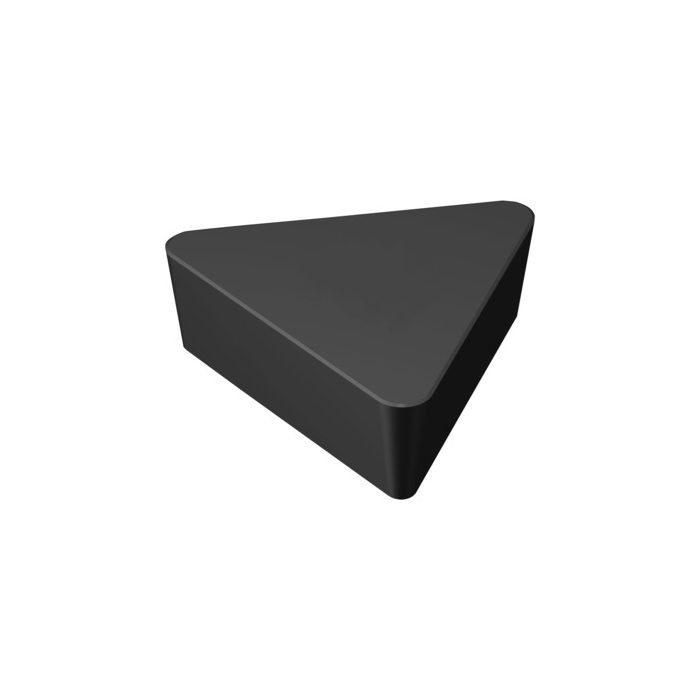

Sandvik Coromant TPGN110308T01020 650 T-Max™ insert for turning
R 215,05
inc. vat
In stock
SKU
5754940
T-Max® insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.5g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 3.175mm |
| LE - Cutting Edge Effective Length | 10.1985mm |
| L - Cutting Edge Length | 10.999mm |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 20deg |
| ORDCODE | TPGN110308T01020 650 |
| CHANGEDATE | 2021-12-17 19:42:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TP1103_1 |
| Grade | 650 |
| SUBSTRATE | CM |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
