R 1 485,80
inc. vat
In stock
SKU
5754858

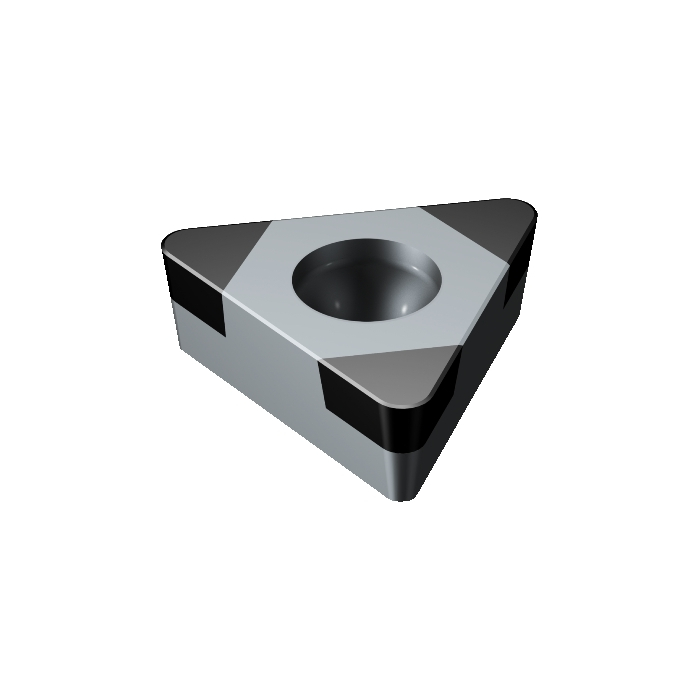

CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1.3g |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 3.175mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 2mm |
L - Cutting Edge Length | 10.999mm |
BN - Face Land Width | 0.1mm |
GB - Face Land Angle | 20deg |
ORDCODE | TPGW110308S01020F 7025 |
CHANGEDATE | 2021-12-17 19:41:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 11 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TP1103_1 |
Grade | 7025 |
SUBSTRATE | BL |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
