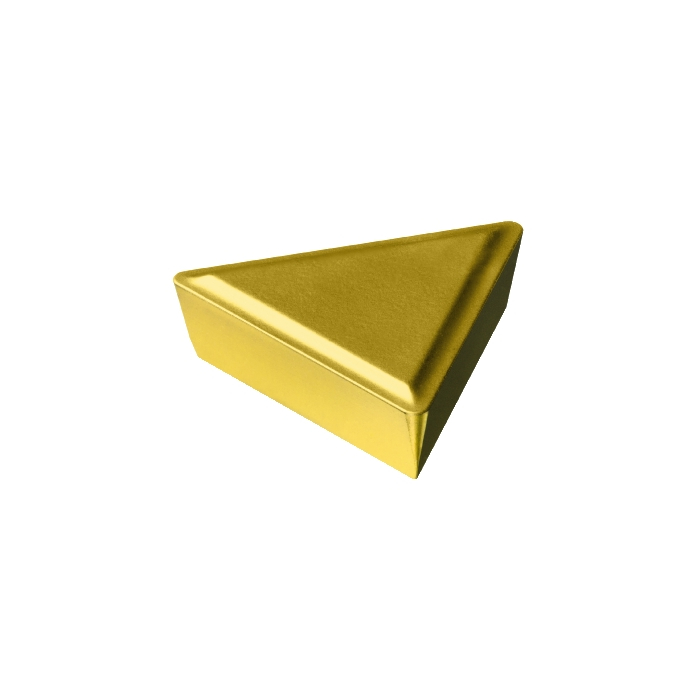

Sandvik Coromant TPMR 22 04 12 2025 T-Max™ S insert for turning
Next
Sandvik Coromant TPMR 16 03 12 2025 T-Max™ S insert for turning
Previous
R 278,30
inc. vat
In stock
SKU
5754888
T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 12.8g |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 4.7625mm |
LE - Cutting Edge Effective Length | 21.197mm |
L - Cutting Edge Length | 21.997mm |
ORDCODE | TPMR 22 04 08 2025 |
CHANGEDATE | 2021-12-17 19:41:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 22 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TP2204_1 |
Grade | 2025 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 53 |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
