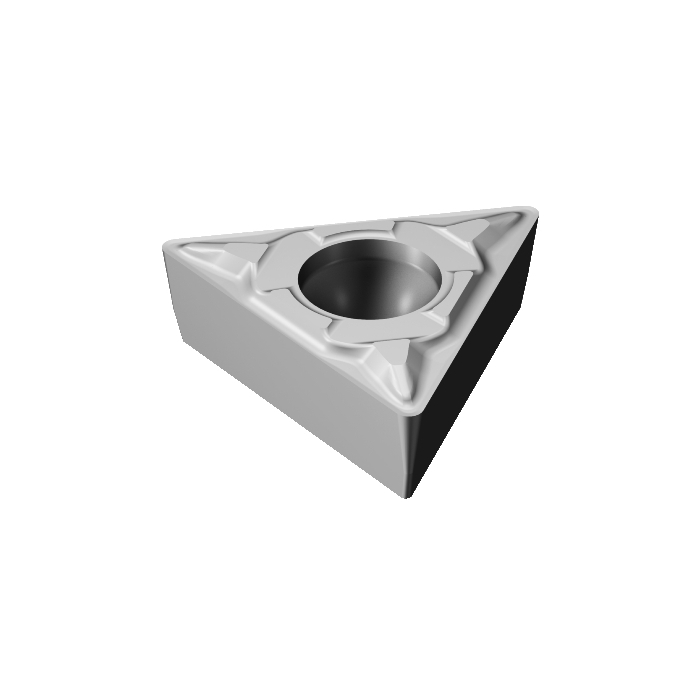

Sandvik Coromant TPMT 06 T1 04-PF 5015 CoroTurn™ 111 insert for turning
R 147,20
inc. vat
In stock
SKU
5755280
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.5g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 3.96875mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 1.905mm |
| D1 - Fixing Hole Diameter | 2.2mm |
| LE - Cutting Edge Effective Length | 6.1991mm |
| L - Cutting Edge Length | 6.874mm |
| ORDCODE | TPMT 06 T1 04-PF 5015 |
| CHANGEDATE | 2022-04-20 17:07:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 06 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TP06T1_1 |
| Grade | 5015 |
| SUBSTRATE | HT |
| CBMD - Chip Breaker Manufacturer's Designation | PF |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
