Sandvik Coromant TR-SL-V13JBL-32HP-X CoroTurn™ TR head for turning
R 6 246,80
inc. vat
In stock
SKU
5755366
CoroTurn® TR head for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® TR head for turning
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 42mm |
| TQ - Torque | 2Nm |
| WT - Weight Of Item | 0.132kg |
| OAL - Overall Length | 45.8mm |
| OHX - Maximum Overhang | 42mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 44deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 22mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 8mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 4.525mm |
| ORDCODE | TR-SL-V13JBL-32HP-X |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0320_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 8 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:52:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TH13_1 |
| Hand | L |

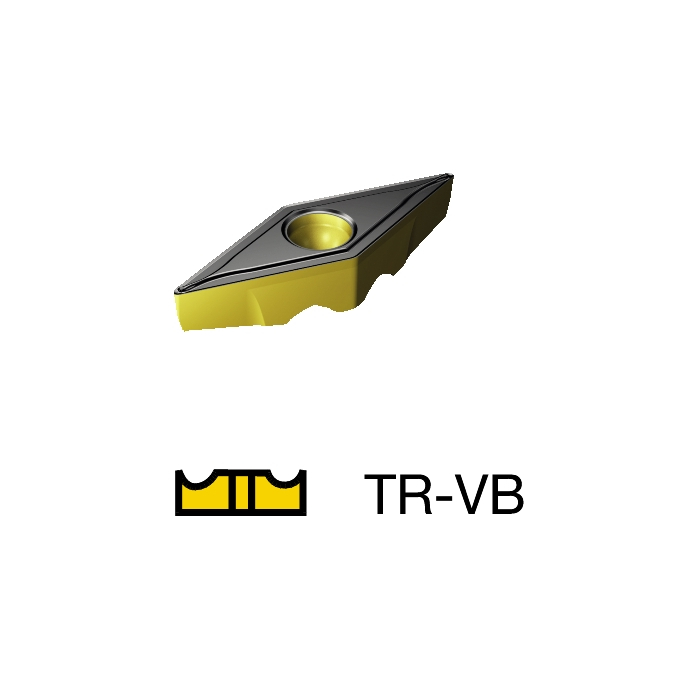

| MIID - Master Insert Identification | TR-VB1308 |
| IFS - Insert Mounting Style Code | 8 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 13 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
